8mm Thrust Bearing
8mm Thrust Bearing
This precision 8mm thrust bearing design is engineered for versatility and ease of use. The ball holder features a slight flex when printed in PLA, ensuring a satisfying snap-in feel. Thrust bearings like this one offer exceptional load resistance and low friction.

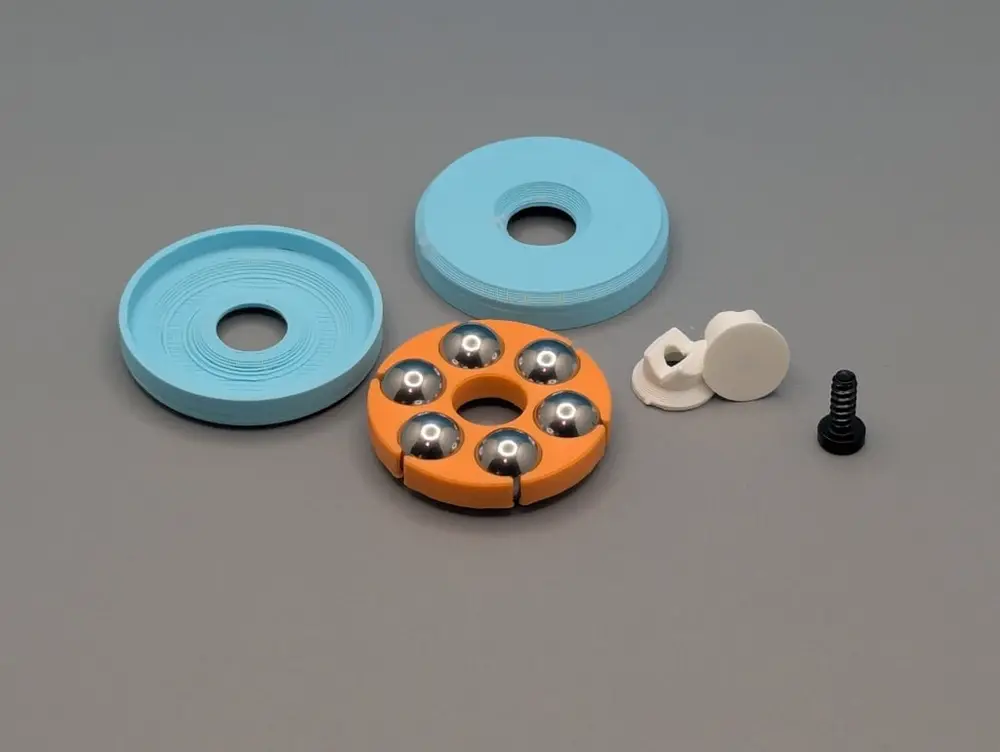

This design includes two optional covers for enclosing the bearing, but the ball cage bracket can also be used independently. It rolls smoothly along flat surfaces, providing a uniquely satisfying experience. Perfect for applications such as fidget spinners, lazy susans, or game pieces requiring smooth 360-degree gliding movements, this model inspires creativity and empowers your imagination.
The covers are secured using the two-part central pin and 3x8 screw. The screw enables micro tension adjustments to modify spin movement.
Dimensions
- cover: diameter 30.1mm
- cage: diameter 27.2mm, height without bearings 3.7mm
- assembled: height with covers 10.8mm
Hardware:
- 1x 3x8 screw
- 6x 8mm Stainless Steel Balls
- 1x Super Lube Oil - (Optional) A few drops on the bearing greatly improves spin.
Links may support me as a designer.
Community friendly CC-BY-NC-SA license
I am passionate about using the CC-BY-NC-SA license because it fosters creativity and collaboration within our community. By allowing derivatives—remixes to be shared under the same terms, we can build on each other’s successes!
Feedback welcome
I strongly encourage comments, suggestions, and requests to help refine and improve this model further. If you discover a print profile or technique that enhances its performance, I hope you'll share it with the community so we can all benefit and grow together!
