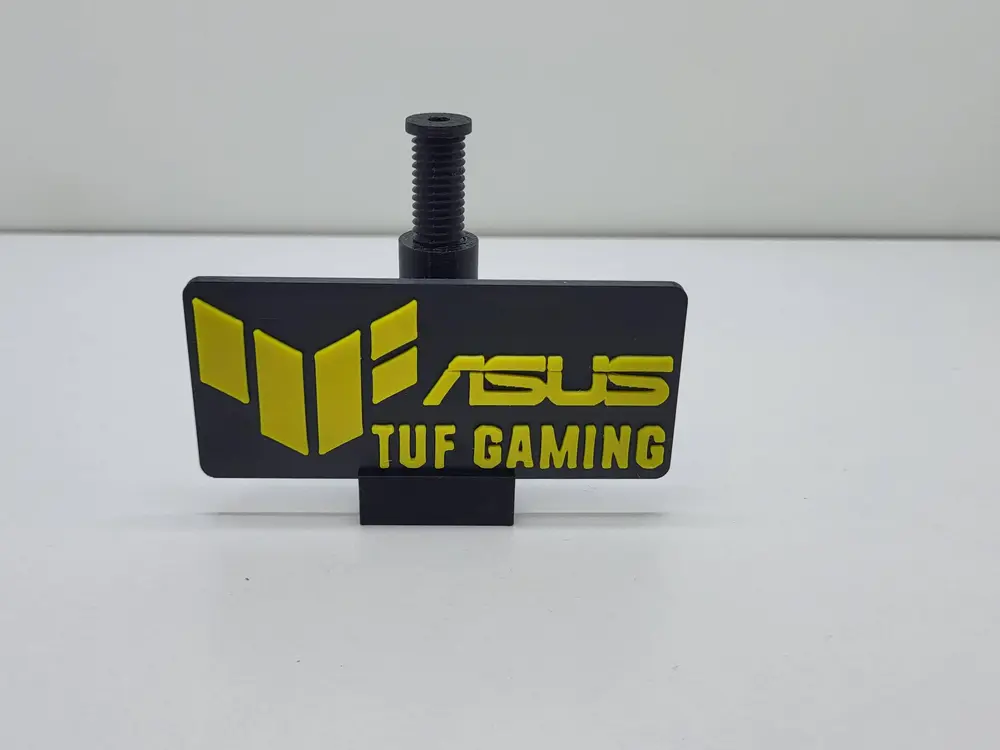

Adjustable graphic card holder bracket - Asus TUF Gaming logo
Min. height 60 mm
Max height 104 mm
Board size 90x40 mm
Uploaded two colorized profiles.
One with Bambu studio (on the pictures, printed 2 times with p1p)
One with Anycubic Next slicer (I have not printed, but same settings)
Instructions:
I set print by object method because different layer heights and ironing.
Inner rod: 0,12 mm
"Main item": 0,16 mm
Board: 0,2 mm
Ironing on all top surfaces for only set for board. I set 30mm/s and 30% (I think the correct setting depends on the printer and the type of filament)
Brims off, if you need enadbe it by items.
No support need.
Infill
Table / board: 25%
Inner rod: 30 %
"Main item": 20%
You can put the board in 3 places with 3 holes next to each other.
An 8x2 mm magnet can be placed in the bottom.
On a flat surface, push the magnet in to make it nice and flat. Minimal superglue can go into the hole.
High-speed printing is not recommended due to fine details.
Check out my other uploads ant download them, as the boards are compatible and you can easily swap them out when you feel like it without having to remove the video card holder.
!!!Make sure the print speed and temperature are set correctly for your printer and the filament you are using!!!
