Anycubic Kobra S1 Poop Chute Slide With Bin

Update: 4/04/25

I redesign the Kobra S1 poop chute to have vents for the fan extractor. Make the fit a lot better and a new and improve lock mechanism, which now your bin will not move anywhere. Amazing!

__________________________________________________________________________________________________________________________________________________________________________________________

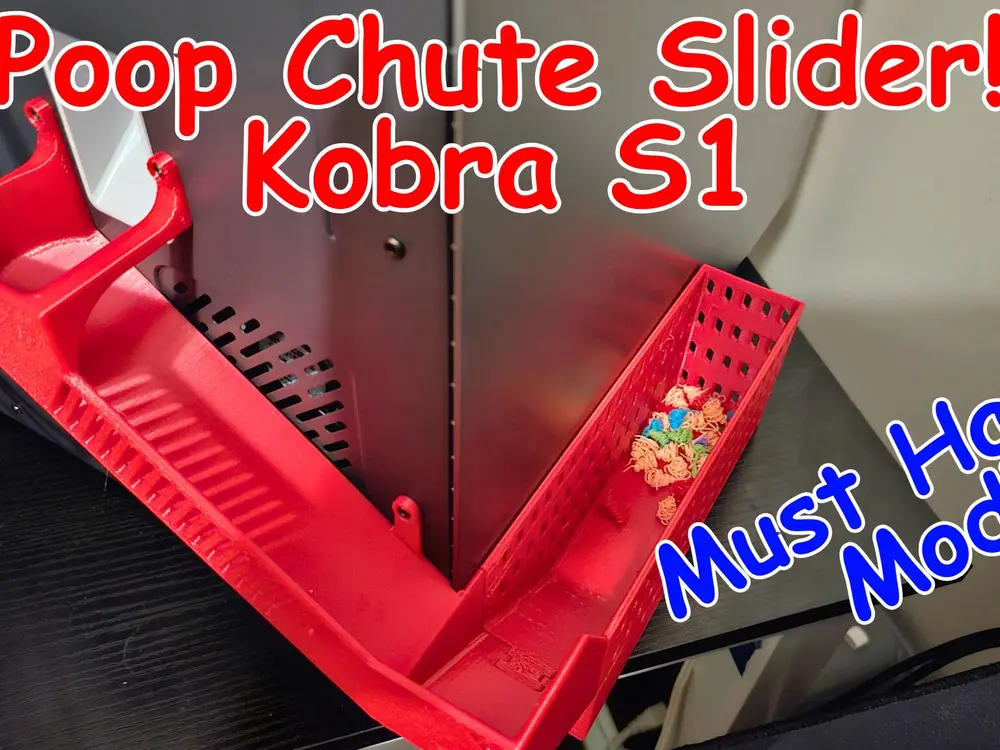

I design this poop chute slide for the Anycbuic Kobra S1, so that all the poop will slide down into the bin at the bottom, instead of the floor.

This design have clearance for the individual filament at the back of the kobra s1. I will fit perfectly with the screw at the back of the 3d printer so no extra things needed to install this poop slider.

You just need to unscrew the three screws at the back of the Kobra S1, next to the opening of the poop chute and one near the fan, then screw in the Poop Chute Slide, perfectly cutout hole for the screw.

Requirements:

1x Poop Chute Slide

1x Bin

1x allen ranch

Print settings:

0.2mm layer height (can also be printed up 0.28mm)

2 walls

15% infill (3D Honeycomb)

300mm/s Print Speed

Minimal support

Filament:

PETG (Recommended)

I explain everything in this video:

New design:
