Brother P-touch P700/P750 Organizer: Printer + Tapes

Storage Station for Brother P-touch P700 / P750

including Tape Organizer & Label Catch Bin

Labels have this wild habit of developing a life of their own after printing... 😅

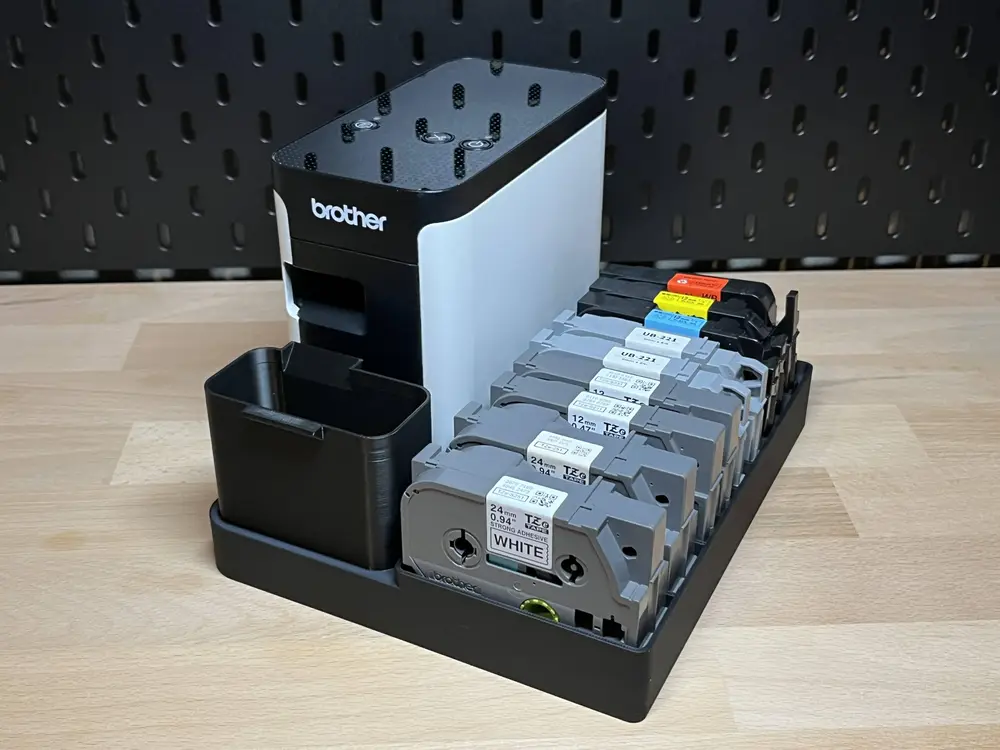

To prevent the desk from becoming a label wasteland, I designed a compact docking station for the Brother P-touch P700/P750: the printer sits neatly in the base, the most important TZe tapes are readily available next to it – and a removable container at the front catches the finished labels directly at the output.

Features

• Dock/Base suitable for Brother P-touch P700 / P750
• Integrated Tape Organizer:

       7× tapes for approx. 9–12 mm

       2× tapes for 24 mm

       plus a narrow compartment for e.g. "reorder" labels / leftover strips

• Label Catch Bin (removable) – quickly emptied, no mess
• New: taller catch bin (for more output at once)
• New: 2 print profiles "For Left/Right Setup (USB cable, space next to printer, wall side...""

Versions / Print Profiles

• Base (right) – organizer on one side, catch bin at the front
• Base (left) – same function, just mirrored (for your setup)
• Catch bin "tall" – more volume, fits into the base (standard for both profiles)

Upgrade for everyday use: Many wanted more "label buffer" – which is why the tall catch bin is now standard. Additionally, the base also comes in a left version, so it fits your desk layout (cable/space/wall side/tape change – you know the drill 😁).

Changelog/Updates

   14.02.2025: Profiles adjusted and revised

   14.02.2025: Replaced previous small container with taller one in profiles

   14.02.2025: Added left base (printer possible on either right or left)

   07.12.2025: Taller catch bin added

„Have fun printing and labeling!“

Already printed? A Make (or short comment) is super helpful: Motivation for me – and a real practical check for others. ✅

Print Instructions

Base

• 0.20 mm layer
• 2 walls
• Z-seam rear
• ~15% infill
• No supports needed (Base)
• PLA is perfectly sufficient

Catch bin (new / support-free, each on the second print plate)

• 0.20 mm layer
• 2 walls
• Z-seam rear
• No supports needed (Catch bin)
• PLA is perfectly sufficient
