Case for Pwnagotchi – slimagotchi mode + UPS Hat (C)
@User_965244
Donate
Message
Follow
Recommended printing method
Add
0,2 layer, 3 perimeters
Kobra 2
Kobra 3
、
Kobra S1
、
Kobra 4
、
Kobra X
、
Kobra 3 V2
、
Kobra 3 Max
、
Kobra 2 Max
、
Kobra 2 Pro
、
Kobra 2 Neo
、
Kobra 2 Plus
/ Plates:1
/ 1h8m
4
Share
Description

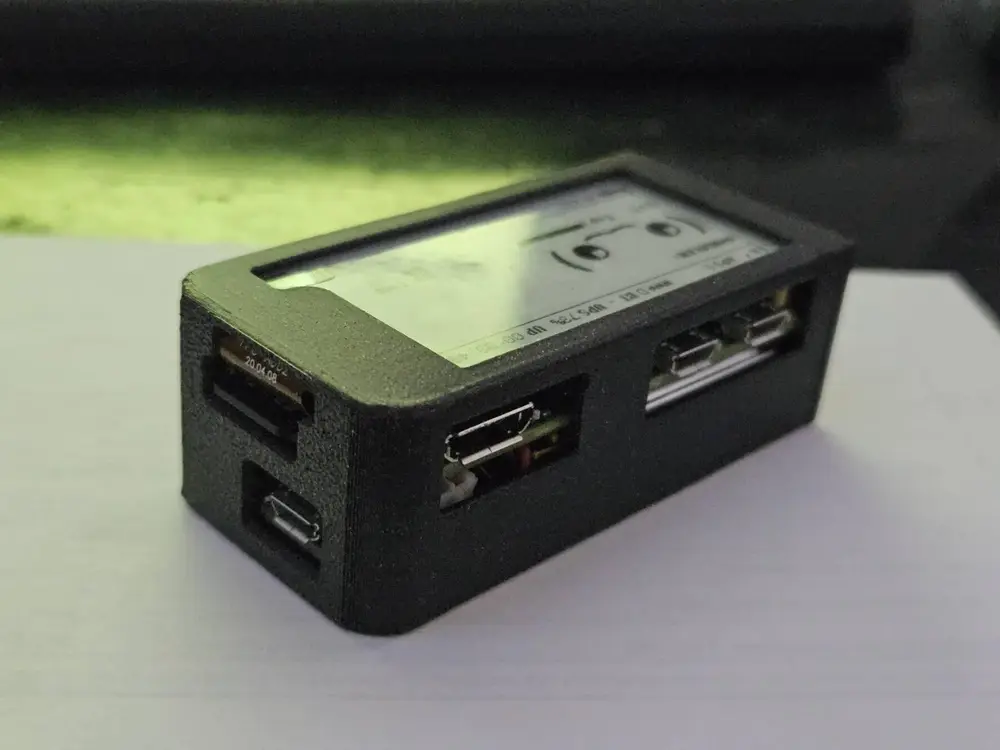

Case for Pwnagotchi - slimagotchi mode.
The model should be placed vertically when printing. The side of the SD card on the bed. Everything is without supports.
I used a 9mm spacer between the UPS and the Raspberry Pi.
There are two pieces of regular round spacers between the display and the Raspberry Pi to create some space between them. I stuck kapton tape on the bottom of the display to prevent a short circuit. The pins on the board are about 5mm long.
All ports are accessible. It closes by pressing the cover from the side where the UPS switch is. The cover should fit tightly to hold it in place. There are also holes on the side of the pins for better cooling.
