CHUN-LI: ULTIMATE EDITION (Street Fighter II)
Here is the sixth model of my new Street Fighter collection: CHUN-LI. This series, titled “Ultimate Edition”, is designed with multi-layer depth, textured clothing, and separate parts to achieve the finish and relief of a real collector's figure. To optimize printing, the design ensures that color changes only occur within the first 3 layers, saving you significant time and minimizing filament purge.
KEY FEATURES

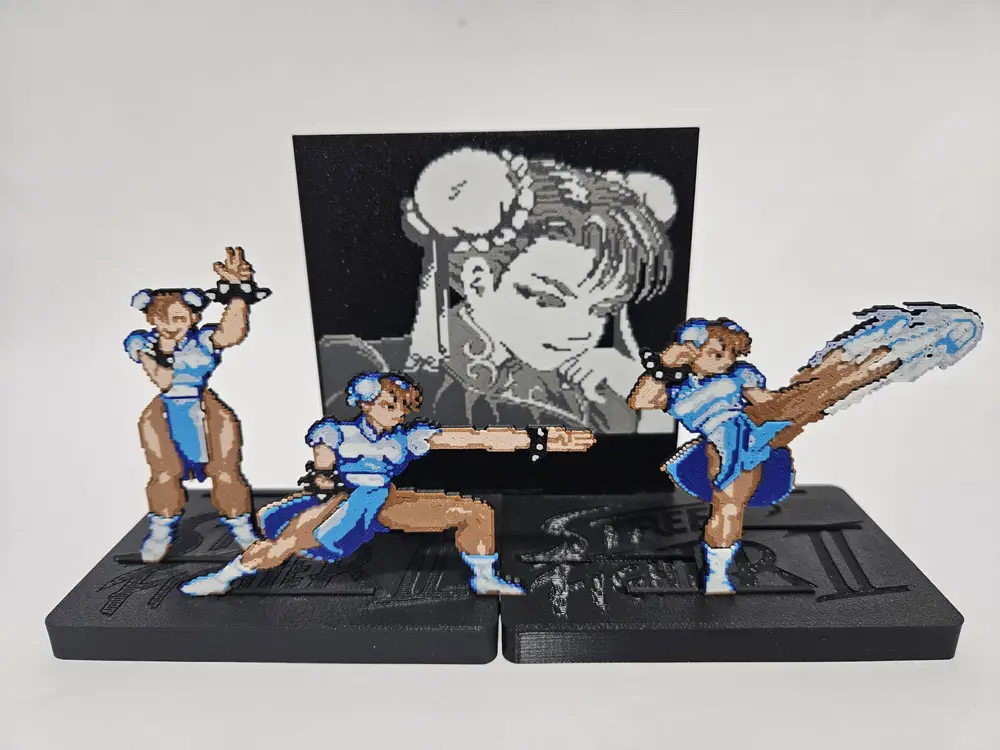

- 3 Poses Included: Fist, Victory, and Multiple Kicks.
- 2.5D Assembly: Clothes and details are designed to be glued onto the bodies, creating a relief.
- Customizable Base: Organize the characters however you like on the base, featuring an engraved Street Fighter II logo.
- Noir Background: Background image based on the original game selection screen (Black, Grey, Dark Grey, and White).
MPORTANT – SMALL PARTS
Some of Chun-Li's clothing and accessory parts are extremely small and delicate. Take extra care when removing them from the print bed, as they can easily break or get lost. Tweezers are strongly recommended for handling and assembling these small parts.
PRINT PROFILES
- OPTION A: (1 AcePro / 4 Colors) Bodies and clothes are on separate plates for the best surface finish. Assembly: You need to GLUE the clothes onto the bodies. I recommend using Gel Superglue (Cyanoacrylate) for total control.
- OPTION B: (2 AcePro / 8 Colors) Chun-Li is printed as a single piece (Body + Clothes combined).
TOLERANCE TEST (Important Read) The last plate contains a fit test. Print this first to verify your printer's accuracy.
- The Design: All slots have a 0.25 mm offset relative to the tabs.
- How to read it: If the token fits perfectly in the second slot, your settings are ideal (0 adjustment).
- Adjustments: If it doesn't fit or is too loose, adjust the "X-Y Hole Compensation" setting on the 02-MAIN BASE plate.
- +0.05: Makes holes larger.
- -0.05: Makes holes smaller.
- Tip: If the fit becomes loose after frequent use, a small piece of cardstock behind the tab will fix it perfectly.
RECOMMENDED SETTINGS
- Layer Height: 0.2 mm
- Orientation: Print models face-down to ensure the correct color sequence and the best possible surface quality.
- Line Width (1st Layer): 0.5 mm
- Bottom Layers: 3
- Infill: 15%
- Top Surface: Monotonic Line.
- Wall Generator: Arachne (Recommended for pixel details).
- Filaments Used: I used the Smartfill Recycled range from Smart Materials, except for the skin tones (Skin and Tan Skin) from the same brand. The final finish may vary slightly depending on your filament brand due to the gradient techniques used in the model.
I hope you like it and enjoy the model!
COMPLETE YOUR SCENE This figure is designed to fit perfectly into the two published dioramas. Choose your favorite stage to display Chun-Li!

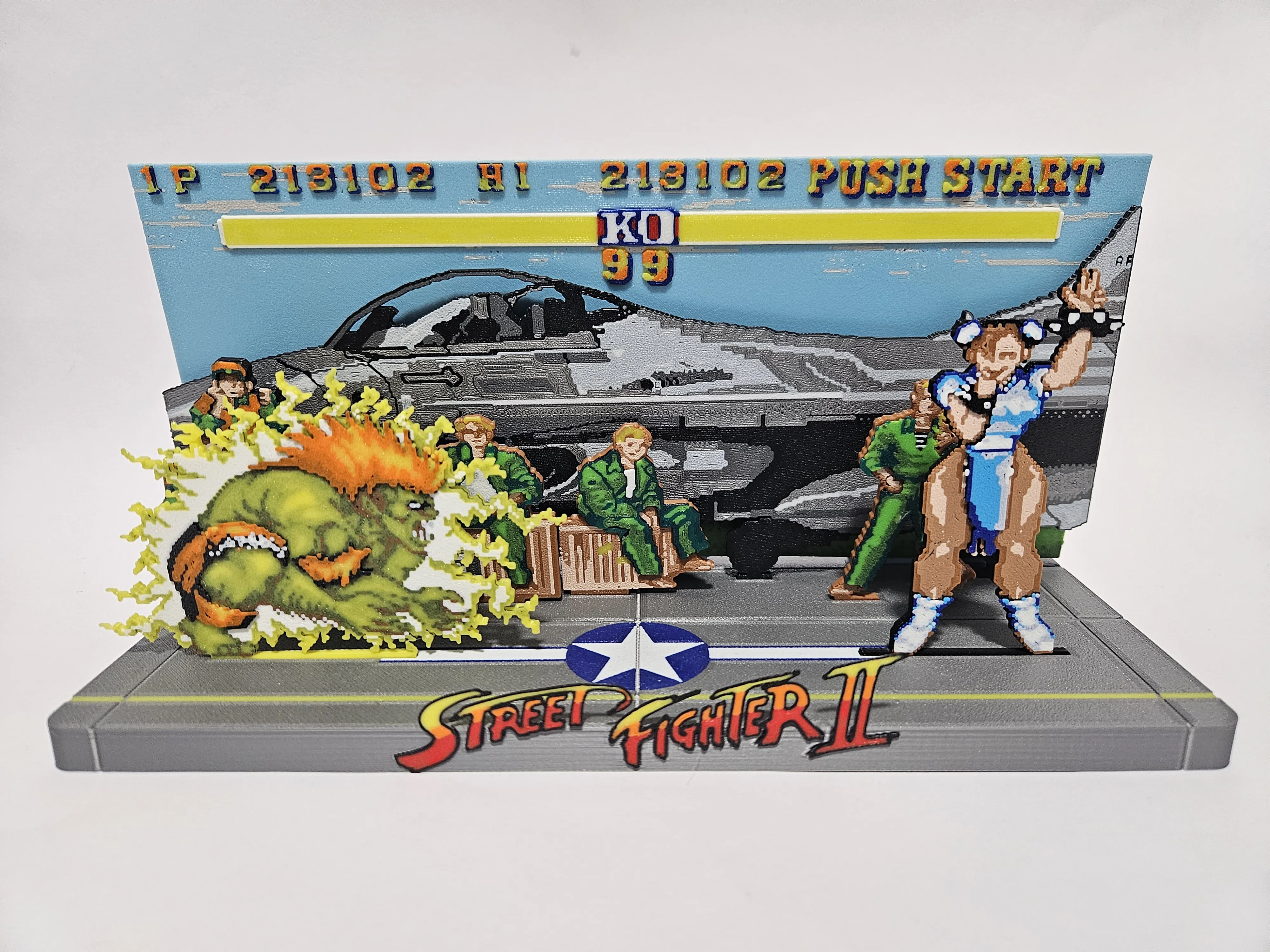

Guile Stage: Air Force Base (SFII)

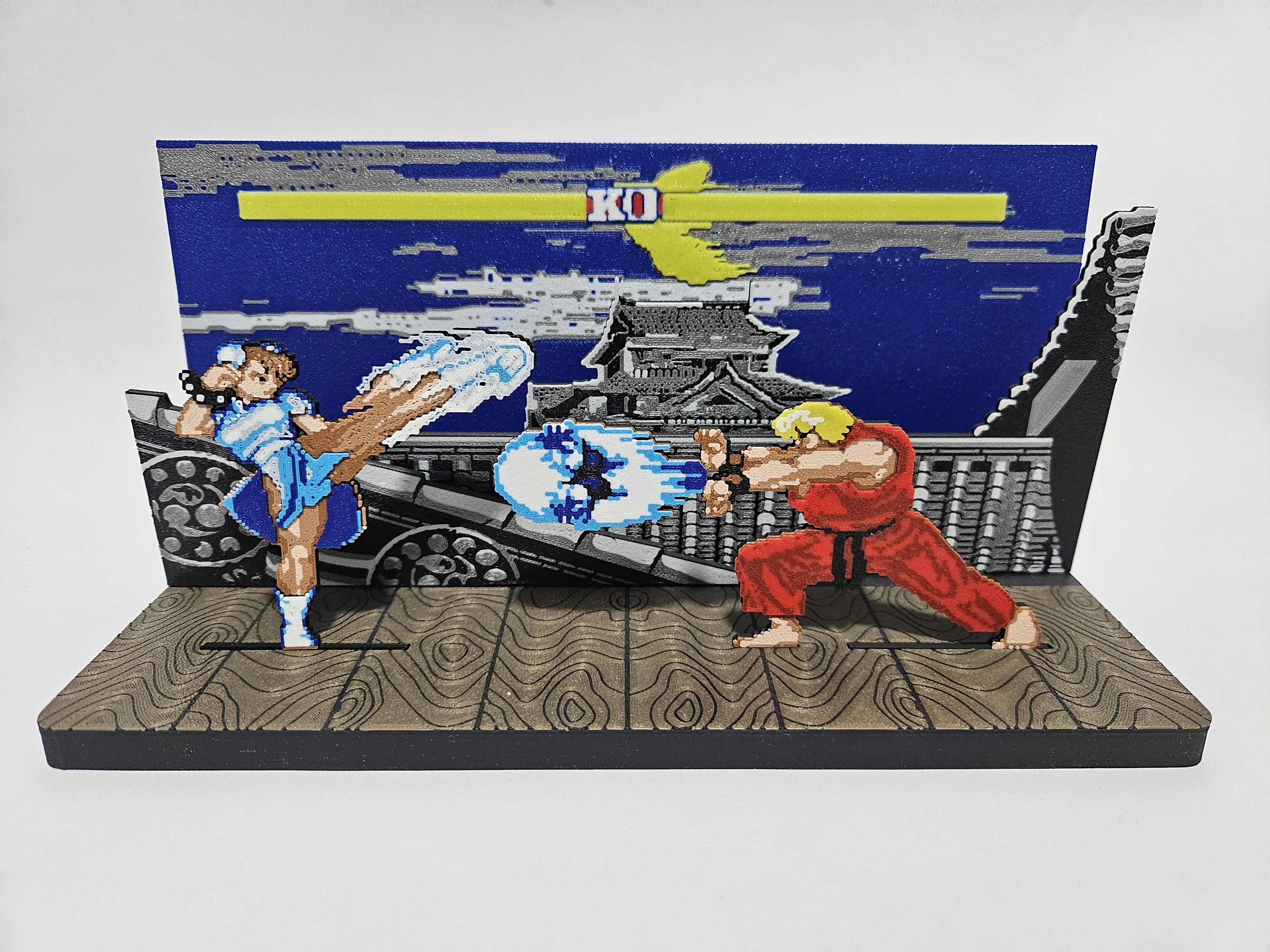

Ryu Stage : Suzaku Castle (SFII)

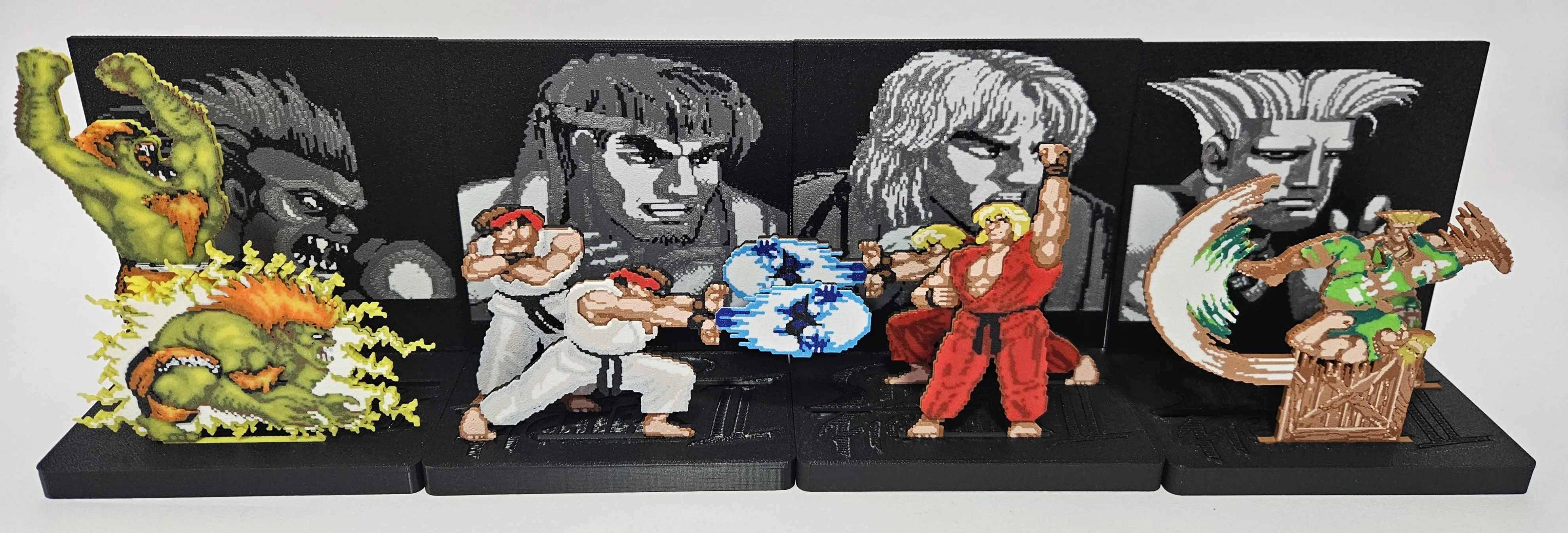

SFII Utimate Edition Collection:
