Electrical clip probe (spring loaded)
@RemiRAFAEL_5158903
Donate
Message
Follow
Recommended printing method
Add
0.16mm layers, 3 walls, 20% infil
Kobra 3
Kobra 2
、
Kobra S1
、
Kobra 4
、
Kobra X
、
Kobra 3 V2
、
Kobra 3 Max
、
Kobra 2 Max
、
Kobra 2 Pro
、
Kobra 2 Neo
、
Kobra 2 Plus
/ Plates:1
/ 26m
5
Share
Description

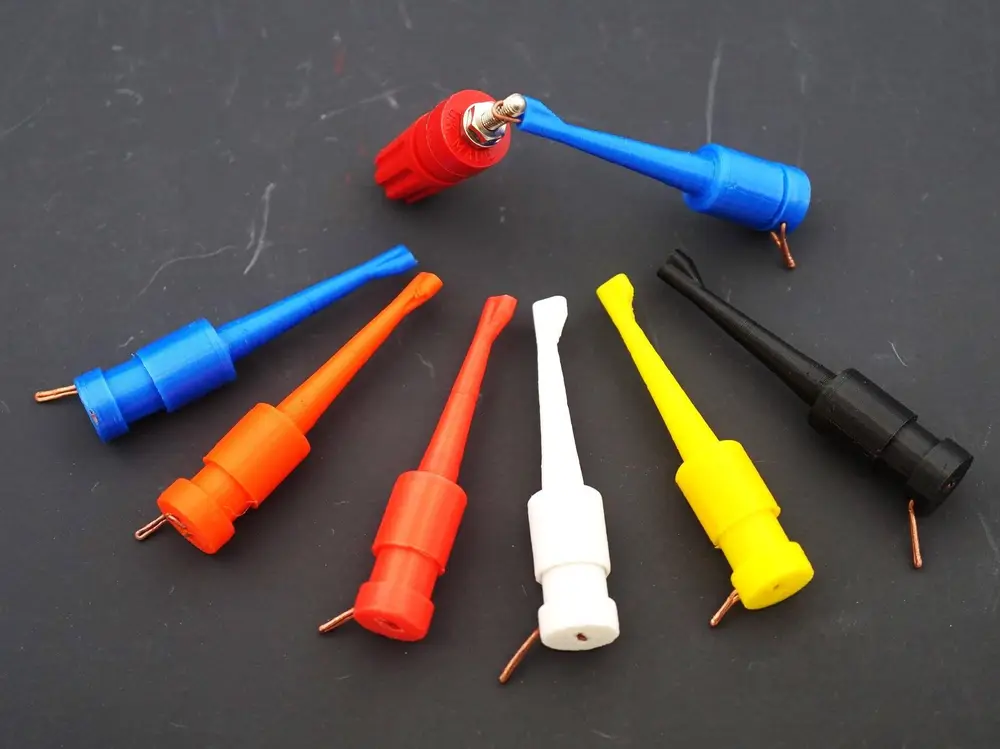

This model is a clip probe for electrical measurements.
It uses a piece of copper wire (0.8 to 1.4mm diameter) and a spring (up to 8mm diameter). A pen spring works well.
Follow the illustration in the pictures to bend and install the wire. The twisting with a drill is important as it not only straighten, but also strengthen the wire by work hardening.
You can then solder a cable at the tail to use the probe.
