Eye of Providence HueForge
Picture source/author not found.
Then used HueForge v0.9.0 to create the model.
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm.
Model size is 150x150mm. You can only modify the X and Y dimensions. Do not adjust the height (Z) in your slicer! The layers would not be correct. You may print at higher layer heights below the Min Depth of 0.64mm. The Max Depth is 2.32mm and the Actual Depth is 2.32mm.
It is possible to print without material system by manually changing the filament (setting filament change or pause) in the slicer, depending on your printer and sw support.

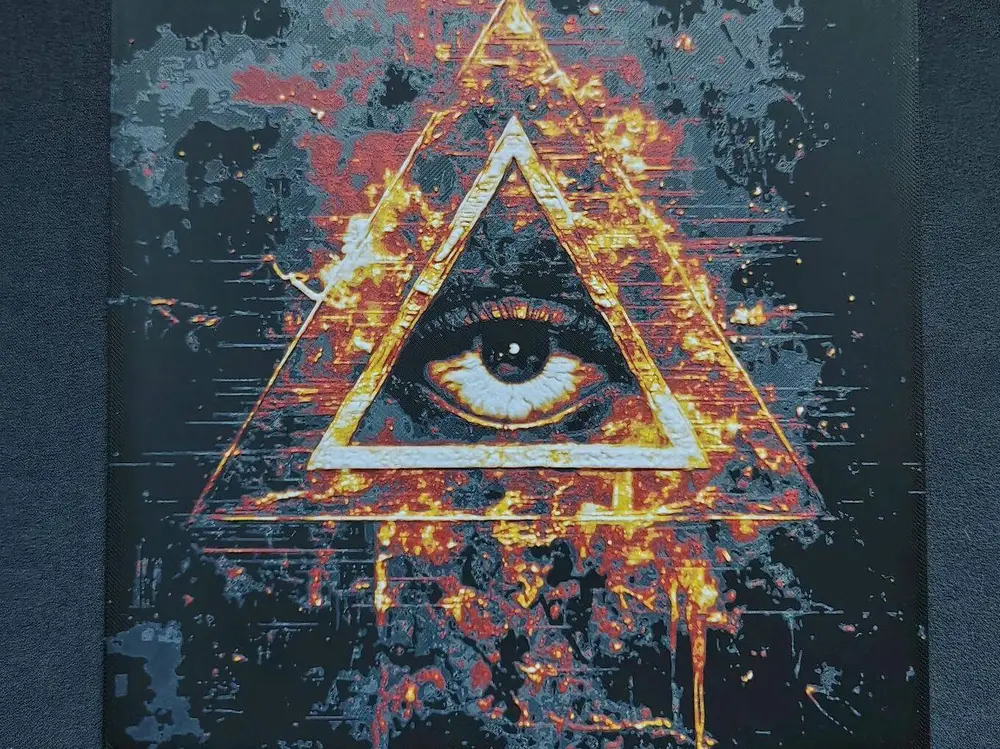

These were my settings and colors for my print that you see in the picture. Your results may be depending on the filament you use.
Filaments Used:
PLA Anycubic Black Transmission Distance: 0.3
PLA Sunlu META Grey Transmission Distance: 3.6
PLA Elegoo + Red Transmission Distance: 3.5
PLA Elegoo + Yellow Transmission Distance: 4
PLA Elegoo Basic White Transmission Distance: 7
This print uses 5 unique filaments
Swap Instructions:
Start with Black
At layer #8 (0.72mm) swap to Grey
At layer #10 (0.88mm) swap to Red
At layer #13 (1.12mm) swap to Yellow
At layer #17 (1.44mm) swap to White for the rest.
