Filament Swatch Card with Thickness Steps and Hole Tolerance Test (80 x 32 mm)

A filament swatch card that does more than show colour. Print one per spool and you get a colour sample, a translucency check and a quick tolerance test on the same card.

FEATURES

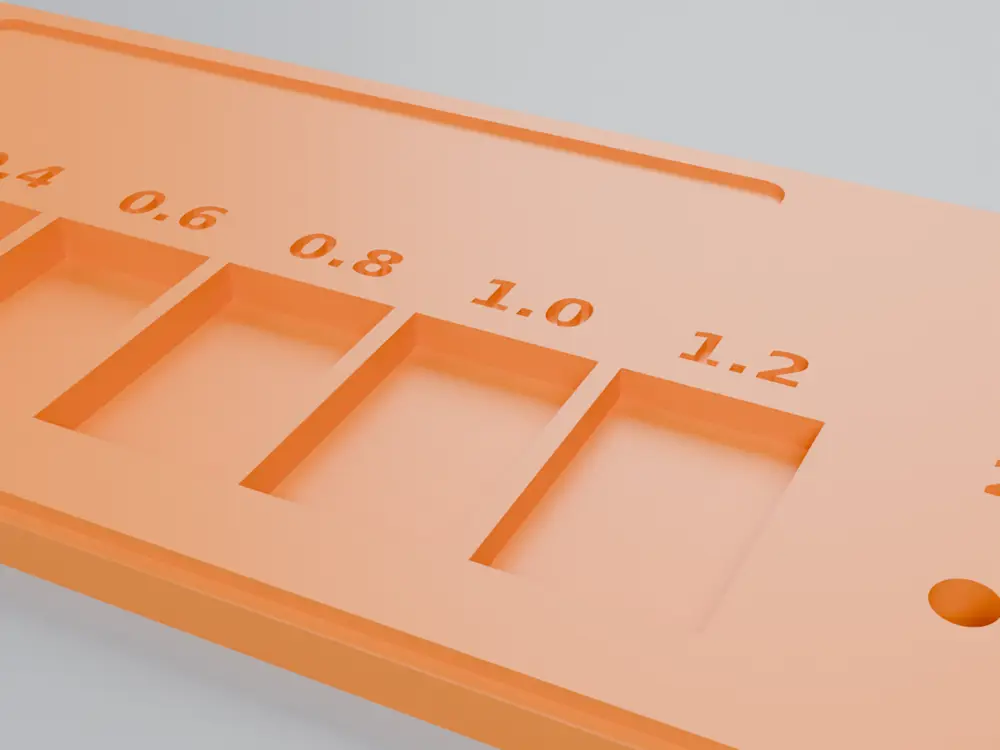

• 6 thickness steps: 0.2 / 0.4 / 0.6 / 0.8 / 1.0 / 1.2 mm - see how the colour and translucency change with wall thickness before you commit a spool to a part
• - Hole tolerance row: 2 / 3 / 4 / 5 mm through-holes - check how much your printer shrinks holes with this filament (test with drill bits or M2-M5 screws)
• - Recessed write-on label area (0.4 mm deep) for brand, colour, nozzle and bed temperature - use a paint marker or label-maker tape
• - Engraved step and hole sizes, engraved PLA marker
• - Keyring hole: string them all on a ring or hang them on a board

SIZE

80 x 32 x 2.4 mm, about 6 g of filament.

SUGGESTED SETTINGS

Print flat, no supports. 0.2 mm layer height (so every step lands on a whole layer), 100% infill or 3 walls, first layer 0.2 mm. Swap the filament and print one per spool.

NOTE

Designed with AI assistance (procedural CAD). Images are renders of the actual print geometry. My own print photos will be added once printed.
