Flipper Rétro (PACMAN)
@Damien_3977574
Donate
Message
Follow
Recommended printing method
Add
Anycubi Kobra 3 ACE - 0.2 layer - 15% infill
Kobra 3
Kobra S1
、
Kobra 4
、
Kobra X
、
Kobra 3 V2
、
Kobra 3 Max
/ Plates:7
/ 12h47m
7
Share
Description

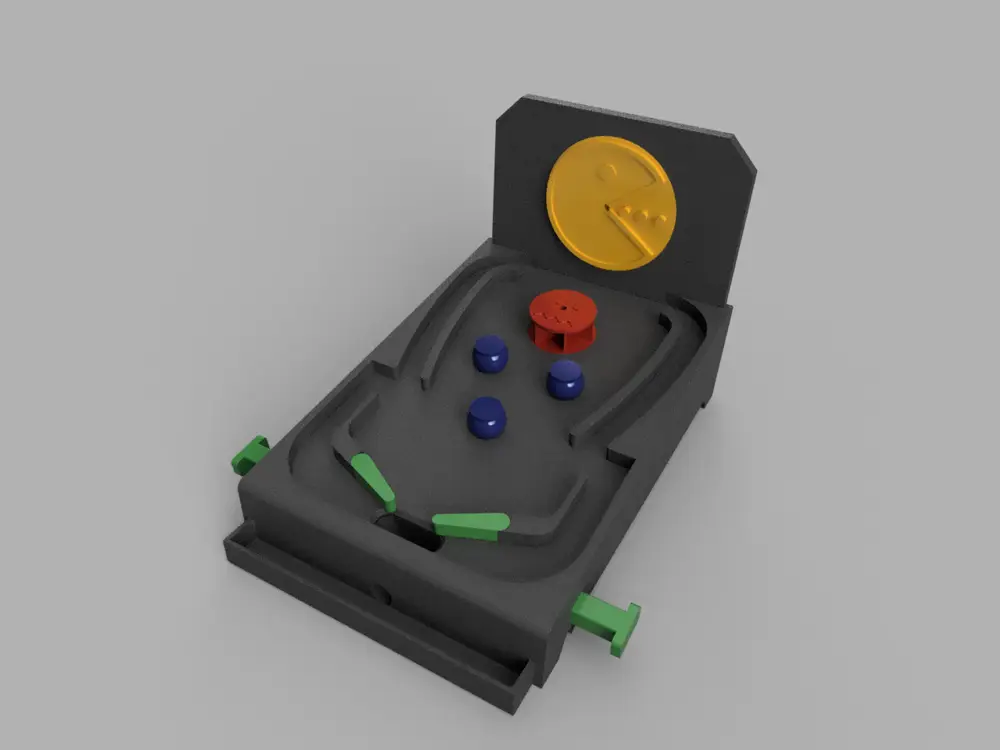

Scale model of a retro pinball machine (suitable for a desktop) with a PACMAN theme.
With a simple design and moving parts, this V1 of this entertainment tool will be improved over time (stay tuned!).
I'm not writing an assembly guide because this first version is quite simple (glue may be used).
Parts Required
- (2x) Rubber Bands – Used for pinball machines.
- 8mm steel balls – These are used as pinball balls.
- PCB: ESP32 Plus (KEYESTUDIO IOT ESP32-WROOM-32 Plus carte de développement + USB de Type C WIFI intégré + Bluetooth pour les projets Arduino ESP32 - AliExpress 502)
- Servos:
- FeeTech FT90m (x2) (Feetech-Mini servomoteur RC FT90M, angle de résistance à 180 °, couple de 2kg, micro robot, retour pour rideau automatique, verrouillage intelligent, avion - AliExpress 26)
Print Settings
- Material:
- PLA recommended. I printed most of the model with Basic PLA.
- TPU bumpers are included in the files, but they are not required.
- Print bed size: All parts fit on a K3 bed (and big sizes)
- Print profiles provided: Kobra 3 + ACE
Future Improvements (V2)
- Adding a ball launcher
- Adding an electronics cover
- Adding cable routing
- Adding non-slip feet (TPU)
