Grave Digger Monster Jam Thor's Hammer - Mjolnir

** FULL MONSTER JAM LINEUP IN FAN CHAINS/HAMMERS ON PATREON**

https://www.patreon.com/cw/K3DPrint

Grave Digger - Thor's Hammer Logo

This is a Grave Digger themed Thor's logo. My updated hammer file is also included. It is separated into three plates so that it can be printed easily. I think after many tests and small alterations, I have come up with a really good profile for this. I sacrificed a little bit of time to get a more durable, better quality result that can be handled fairly rough, haha.

Changes:

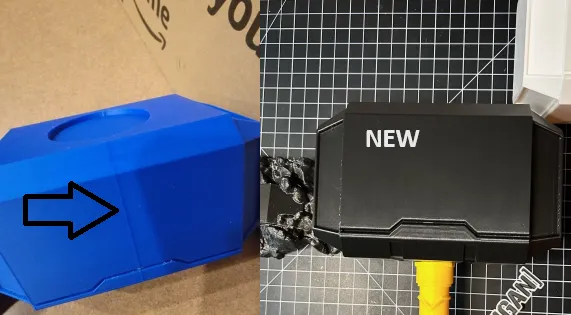

• I was able to get rid of the slight line that ran down the middle when printed.
•

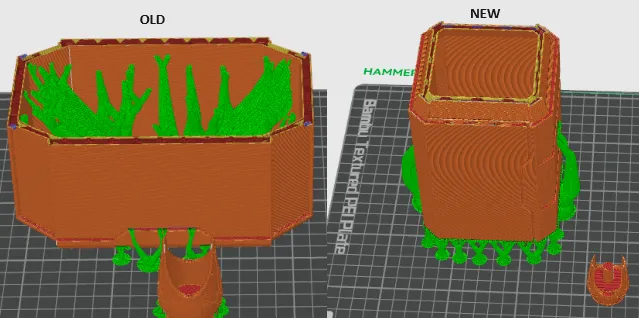

• No more removing a mess of supports from the inside.
•

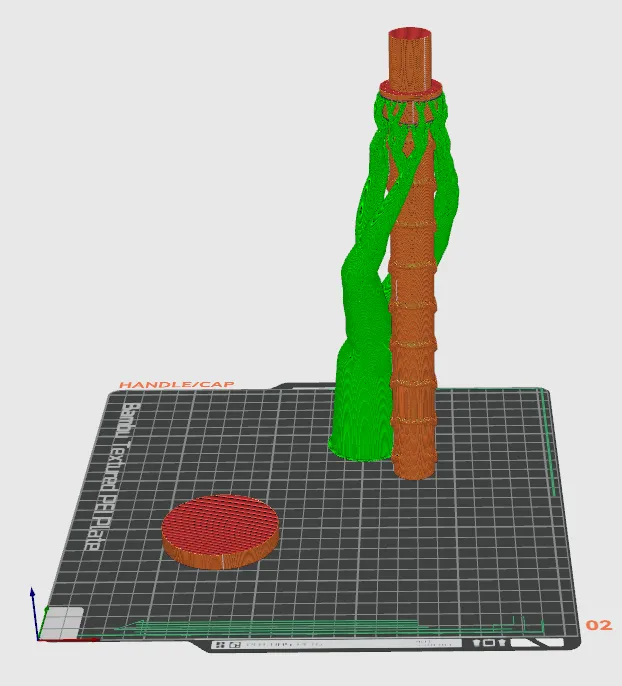

• The handle has been changed/re-oriented. This uses a bit more supports, but it provides a clean connection to the bottom of the hammer. I have printed lots of these for friends and family, and we had a few break off at that point. This change seems to end up with a sturdier hammer.
•
• The “top cap” has had the lettering removed. At 75%, the quality suffered, and this just provides a cleaner look, especially with a textured plate.

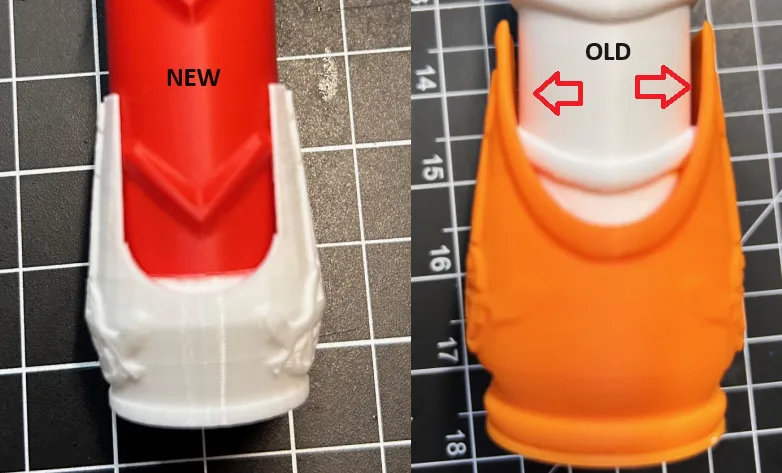

• I replaced the bottom cap with a different design, that sits flush with the side of the handle. This helps prevent the top pieces from snapping off.
•

Credits:

@ChaosCoreTech (Original Hammer Designer)

@Emp3thy (Hammer Remix)

@3DHummel (Rock Stand - 75%)
