JoyDeck – Universal Desktop Controller

JoyDeck is a compact and customizable desktop controller designed to simplify computer control through immediate analog interaction.

It uses an 8-direction joystick and a central push button to trigger complex commands with a single gesture: launching applications, keyboard shortcuts, media control, mouse navigation, orbital mode, system automation and HTTP requests.

JoyDeck is not a traditional macro keyboard and not a gaming joystick.

It is a universal control hub, designed for people who spend their day working in front of a screen.

What makes JoyDeck unique

• 8-direction analog interaction – a natural gesture instead of remembering key combinations
• RGB visual feedback – every command is associated with a color for instant recognition
• Smart activation modes – release, confirm or hold actions
• Dedicated desktop software – simple but powerful interface with savable and shareable profiles
• A real desktop device – stable, always ready, no batteries and no wireless needed
• Designed for makers and professionals, not as a gadget but as a daily productivity tool

JoyDeck was created from a real need:

reduce clicks, menus, windows and mental load during creative and technical work.

List of Materials & link

• 1 Wemos D1 mini ESP32 (recommended with chip CP2104);
• 1 WS2812 Led RGB Ring 16bit;
• 1 Analog Stick HW-504;
• 1 Balancer Weights Stick-ON (60gr, 123x18.8 mm);
• 5 Heat-Insert Nut M3x5x4;
• 5 screws M3X6;

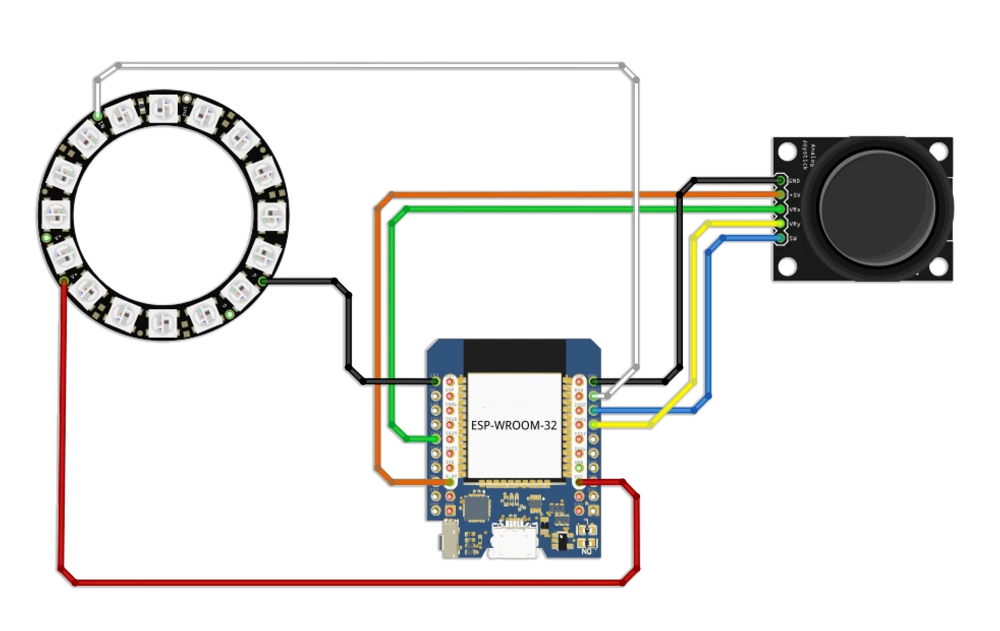

Electronic diagram

GitHub

• Software & Firmware JoyDeck downlaod here;
• Tool ESP Programmer 2 download here.
