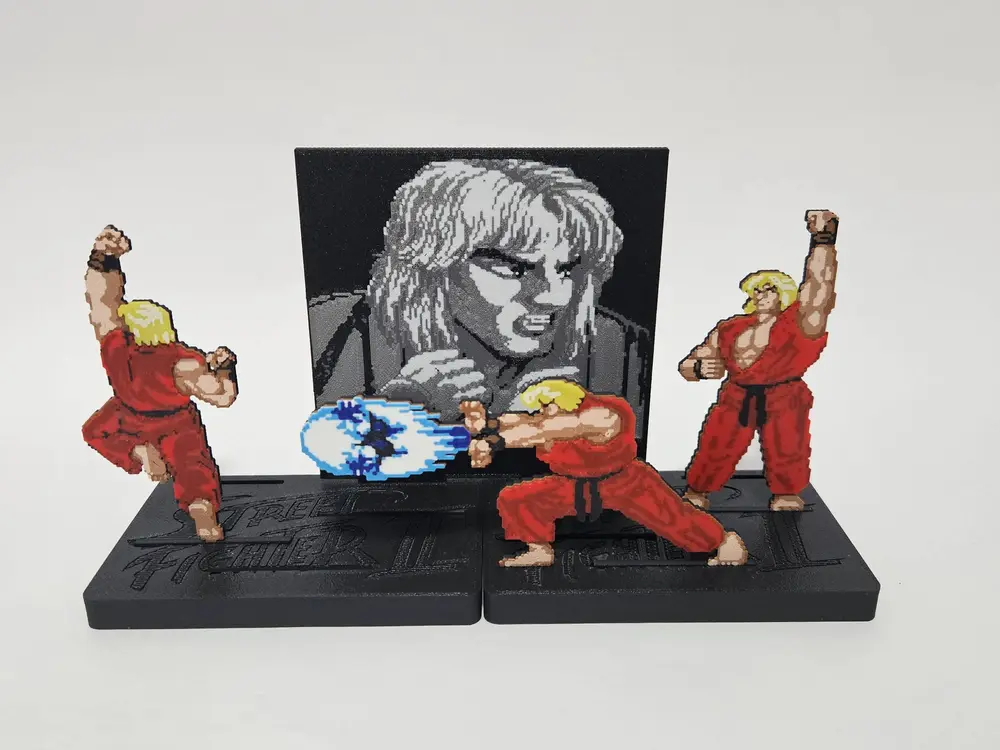

Ken Street Fighter 2 Pixel Art Figure
Here is my last model of my new Street Fighter collection: KEN. This series, titled “Ultimate Edition”, is designed with multi-layer depth, textured clothing, and separate parts to achieve the finish and relief of a real collector's figure.
KEY FEATURES
- 3 Poses Included: Victory, Hadouken, and Shoryuken.
- 2.5D Assembly: Clothes and effects are designed to be glued onto the bodies, creating a relief.
- Customizable Base: Organize the characters however you like on the base, featuring an engraved Street Fighter II logo.
- Noir Background: Background image based on the original game selection screen (Black, Silver, Dark Grey, and White).
PRINT PROFILES
OPTION A: (1 ACE PRO2 / 4 Colors)
- Bodies, Clothes, and Hair are on separate plates for the best finish.
- Assembly: You need to GLUE the clothes/hair onto the bodies. I recommend using Gel Superglue (Cyanoacrylate) for total control.
OPTION B: (2 ACE PRO2 / 8 Colors)
- Ken is printed as a single piece (Body + Clothes combined).
- Extra: Includes the Hadouken as a separate piece to allow for different colors or transparent materials.
TOLERANCE TEST (Important Read)
The last plate contains a fit test. Print this first to verify your printer's accuracy.
- The Design: All slots have a 0.25 mm offset relative to the tabs.
- How to read it: If the token fits perfectly in the second slot, your settings are ideal (0 adjustment).
- Adjustments: If it doesn't fit or is too loose, adjust the "X-Y Hole Compensation" setting on the 02-MAIN BASE plate.
- + 0.05: Makes holes larger.
- - 0.05: Makes holes smaller.
- Pro Tip: If the fit becomes loose after frequent use, a small piece of cardstock behind the tab will fix it perfectly.
RECOMMENDED SETTINGS
- Layer Height: 0.2 mm
- Line Width (1st Layer): 0.5 mm
- Bottom Layers: 3
- Infill: 15%
- Top Surface: Monotonic Line.
- Wall Generator: Arachne (Recommended for pixel details).
Filaments Used: I used the Smartfill Recycled range from Smart Materials, except for the skin tones (Skin and Tan Skin) from the same brand. The final finish may vary slightly depending on your filament brand due to the gradient techniques used in the model.
COMPLETE YOUR SCENE
This figure is designed to fit perfectly into the three published dioramas. Choose your favorite stage to display KEN!
Guile Stage (Air Force Base):
Ryu Stage (Suzaku Castle):
Full Set - Ultimate Collection: (Still in progress. I'm adding new characters to the collection.)
