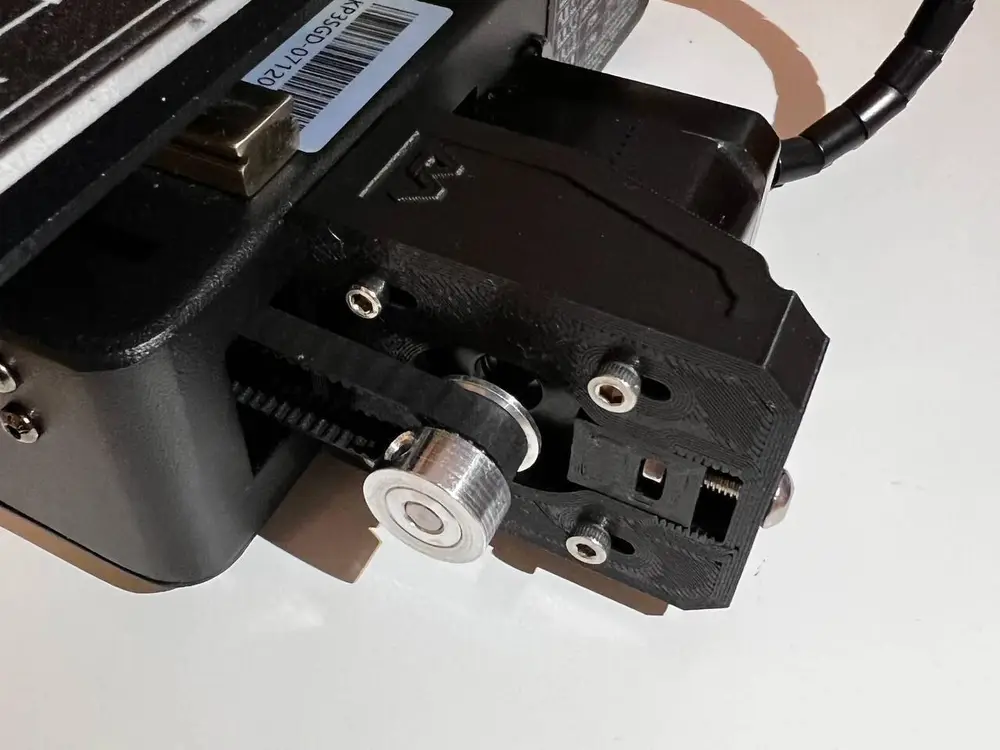

Kingroon KP3S - Y Belt Tensioner

Y Belt Tensioner for Kingroon Kp3s

This is a belt tensioner design for kingroon Kp3s, it is easy to assembly.

Este es un nuevo diseño de tensor para el eje Y de la kingroon Kp3s, muy fácil de montar

Other mods for Kingroon KP3s

You can help me make more upgrade with a donate. Puedes ayudarme a seguir haciendo actualizaciones realizando una donación Click to danate

Material list:

• 4 units – Screw DIN 7380 M3x12
• 1 units – Screw DIN 7380 M3x16
• 1 units – Nut DIN 934 M3

Assembly instructions

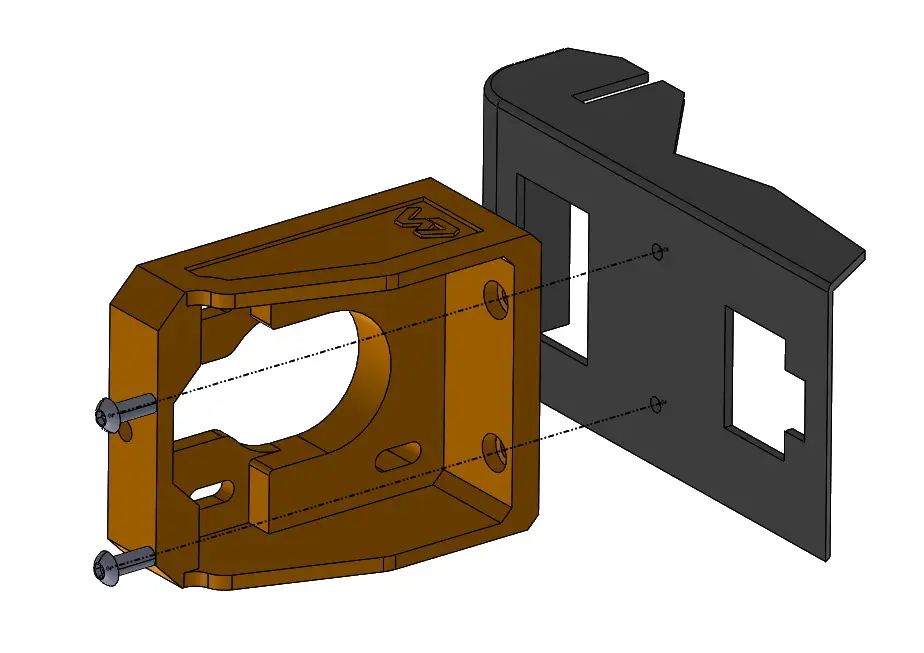

1.Screw Base tensioner to printer

• 1 unit - Base_belt_tensioner
• 2 units - Old screw bracket

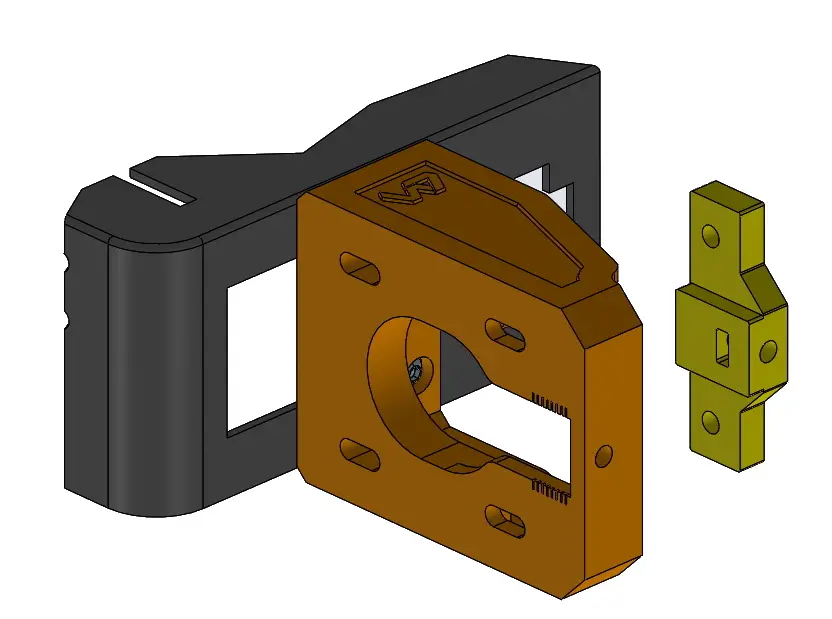

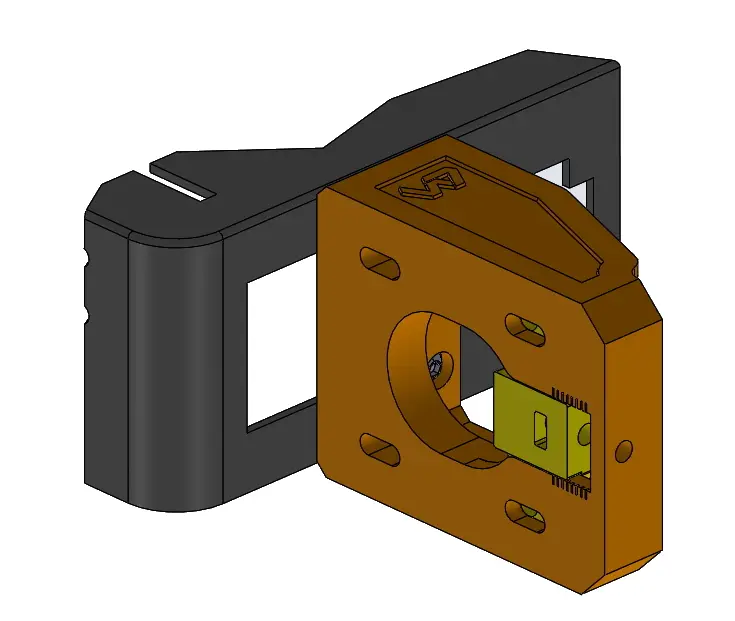

2. Belt tensioner

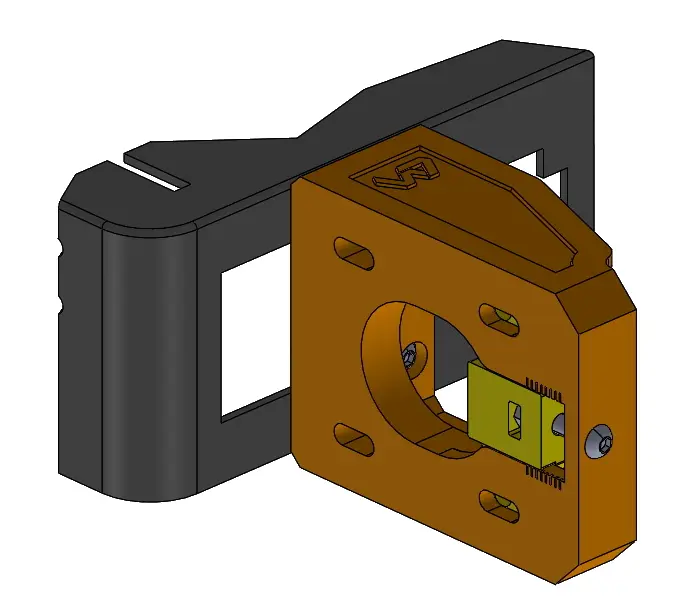

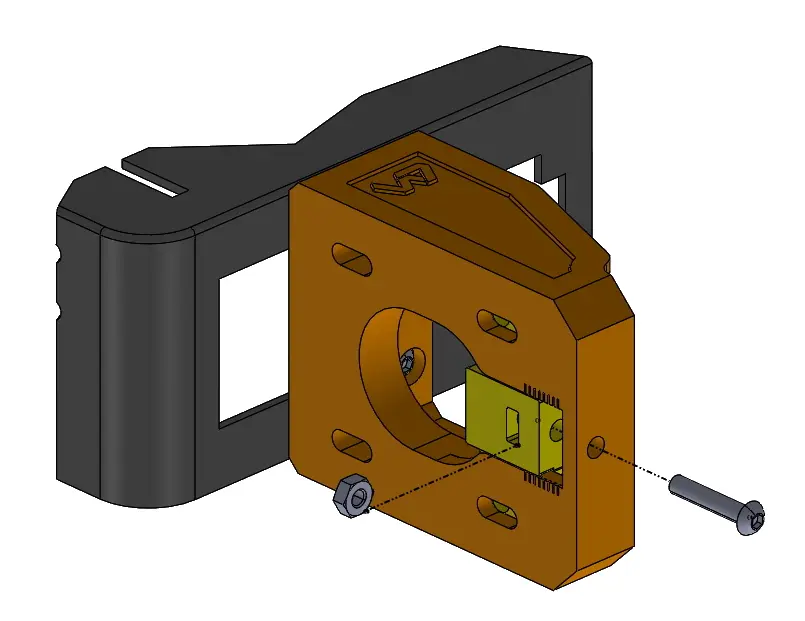

3. Tension adjusting screw

• 1 units – Screw DIN 7380 M3x16
• 1 units – Nut DIN 934 M3

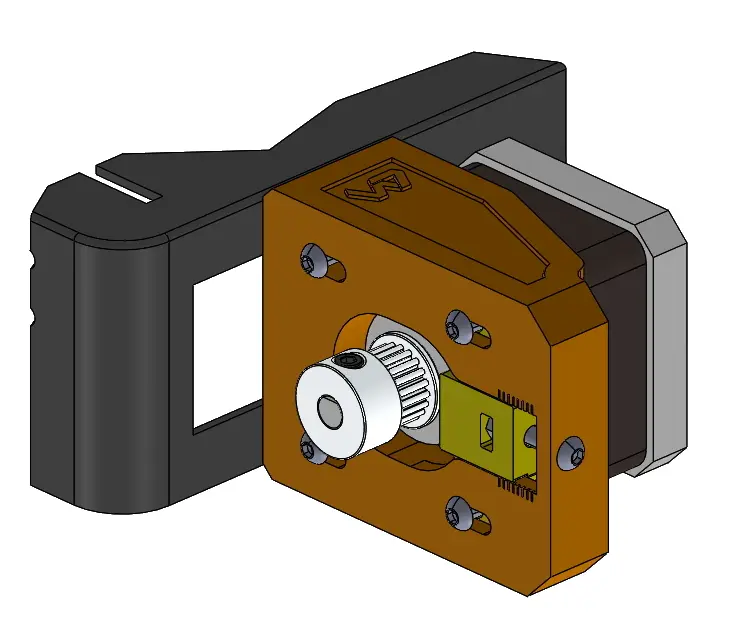

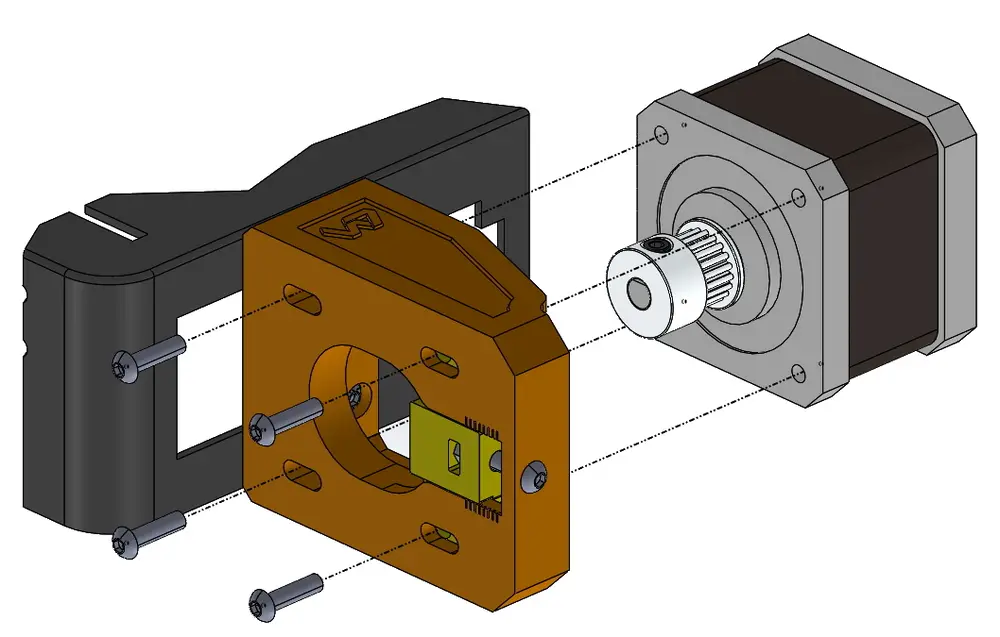

4. Nema motor

• 4 units – Screw DIN 7380 M3x12
