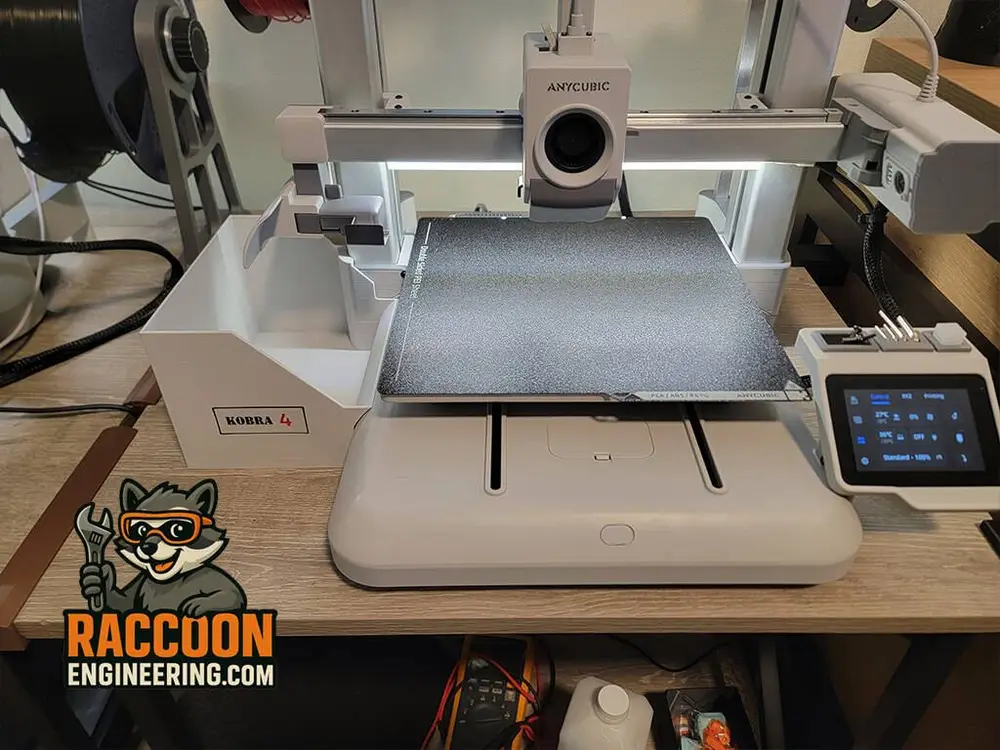

Kobra 4 Gantry Lighting
Add lighting to your project on your Kobra 4 printer. This does NOT work with the Kobra X. Kobra X Version available here
Uses standard 8mm COB and FCOB lighting. Can be powered of the Kobra USB port or any USB wall adapter or computer. The USB cable routes nicely down the loom on right side. Requires four M3 x 30mm fasteners.
There is also a link to an inexpensive USB extension cable if you want to power the light from something besides USB on side of Kobra.
Parts:
USB extension cable (if you are running to Kobra USB port)
M3 Hardware kit if you do not have the fasteners
Clear PLA Filament for diffuser
Note we have found that Anycubic "light grey" is a really good match for the printer plastic. We use "texture grey" as an accent color on most our products.
Amazon links
The nuts are print in place so there will be a pause at layer 20 so you can drop in the nuts and then resume.
The main bar is dovetailed in the center to join the sides. Add a drop of superglue if desired.
There are two versions of this. Diffused and Non Diffused versions. The Diffused version spreads light more evenly but requires you to print with clear filament available here. The included models are set to two color printing so you can print in your color of choice and the diffusers section just where needed.
As a bonus the lightbar mounts cover the ugly extrusions that come on the Kobra 4.
