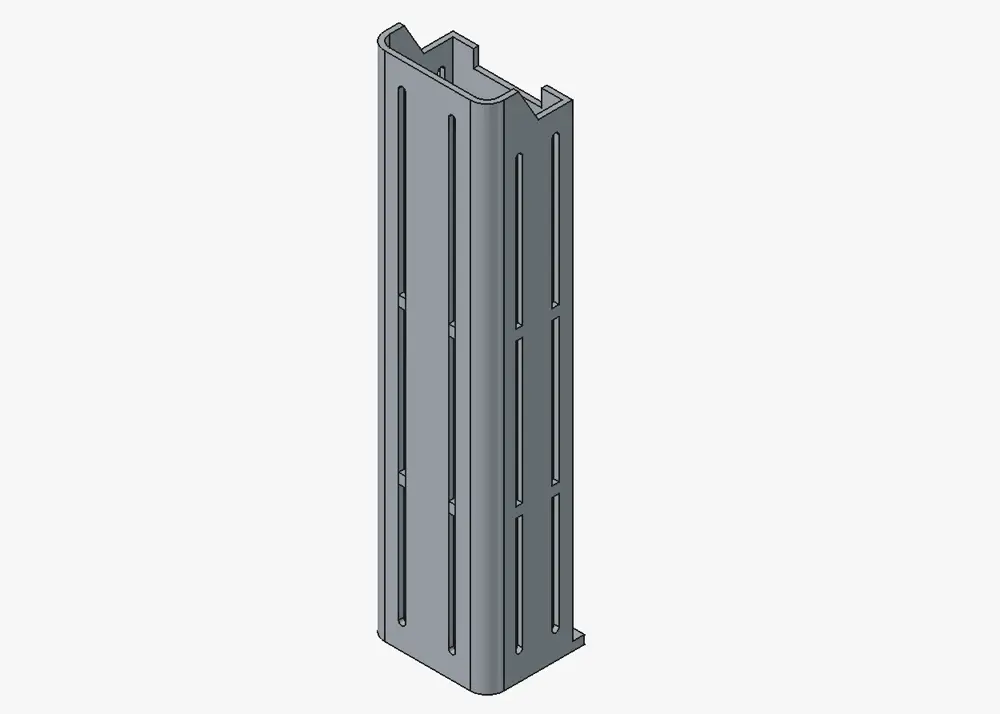

Kobra S1 MAX Waste/Poop Bin - Optimal Size

Waste/Poop bin with an optimal size for the Anycubic Kobra S1 Max.

Designed using FreeCAD.

We've added support struts to the side views to improve the print quality on the top and make sure that the print problems reported is prevented.

Width: 70mm

Base depth: 57mm

Bin depth: 50mm

Max Height 300mm

Dispenser side height: 270-280mm

Thickness: 3mm

Viewing slots on the body - Width: 2mm

Support struts: 4x6mm

Print time ~ 5 h 30 min

No support needed.
