Kobra X Cobra Front Cover - honeycomb + cobra (3 versions)

Remix of Andrew's KOBRA X Front Cover (public domain, CC0) for the Anycubic Kobra X toolhead. The cobra artwork is my own drawing.

What's new

- Symmetric honeycomb vents around the screen window.

- A cobra emblem at the bottom. Its belly ribs are cut through as vents, and the lowest rib opens through the bottom edge so you can still see the nozzle.

3 versions (pick one)

- A - White cobra: the whole cobra is a flush colour inlay on the front face.

- B - White details: only the hood lines, eyes, fangs and face lines are inlaid.

- C - Single colour: no inlay, just the rib vents and honeycomb.

Print settings

- Kobra X with ACE, 0.4 nozzle, textured PEI plate. Prints face down, no supports.

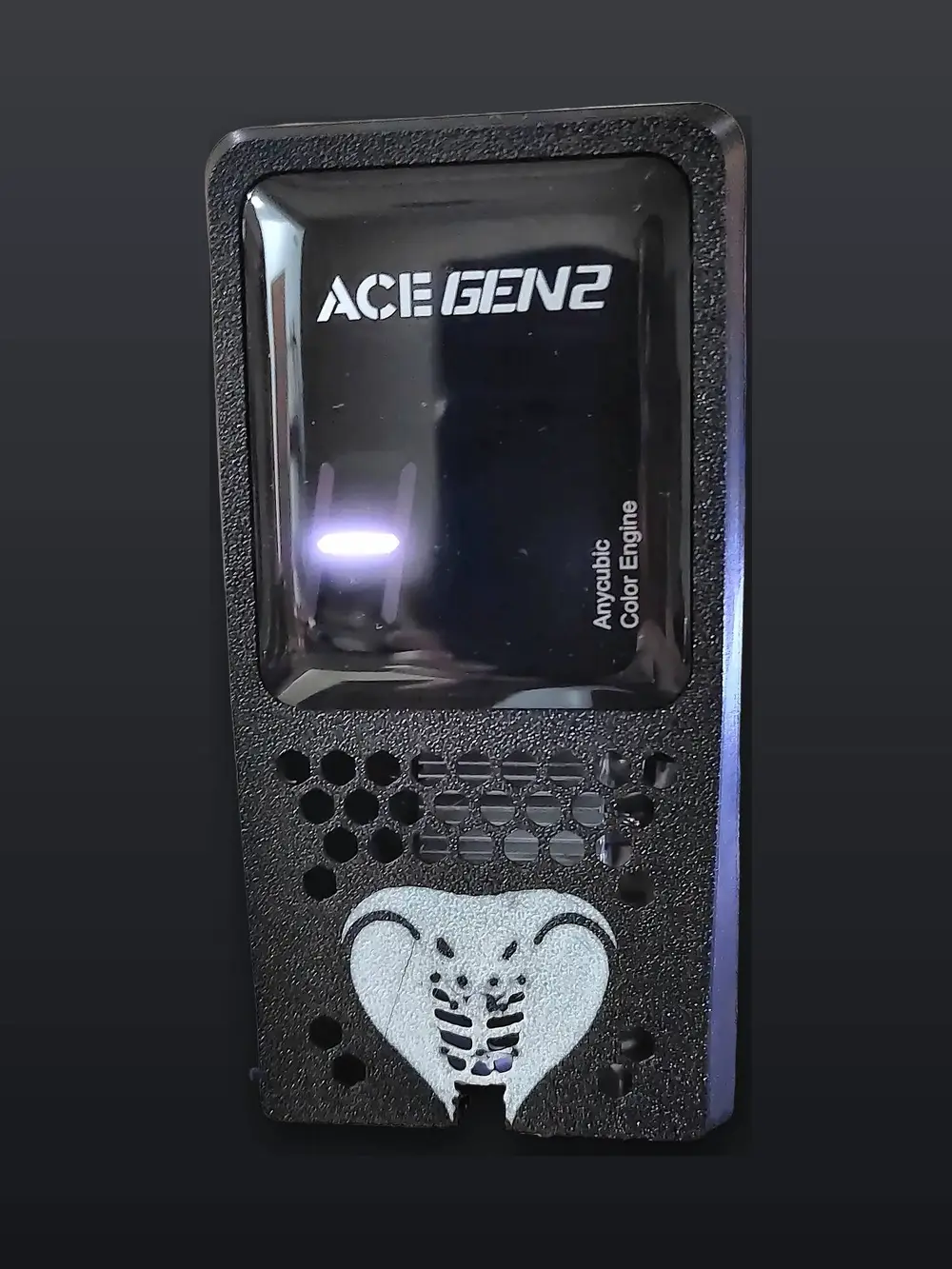

- A/B: cover filament in slot 4, inlay filament in slot 2. Both must be PETG - a PLA inlay will not bond to a PETG cover. Pictured: black cover with white inlay.

- Keep first layer 0.20 mm and layer height 0.16 mm so the inlay depth (0.36 mm) lines up.

- Prime tower ON for A/B, OFF for C.

- PETG tips: turn on Avoid crossing walls to cut stringing in the honeycomb, and dry your filament first.

Original model: Andrew - KOBRA X Front Cover (https://www.makeronline.com/en/model/299514)
