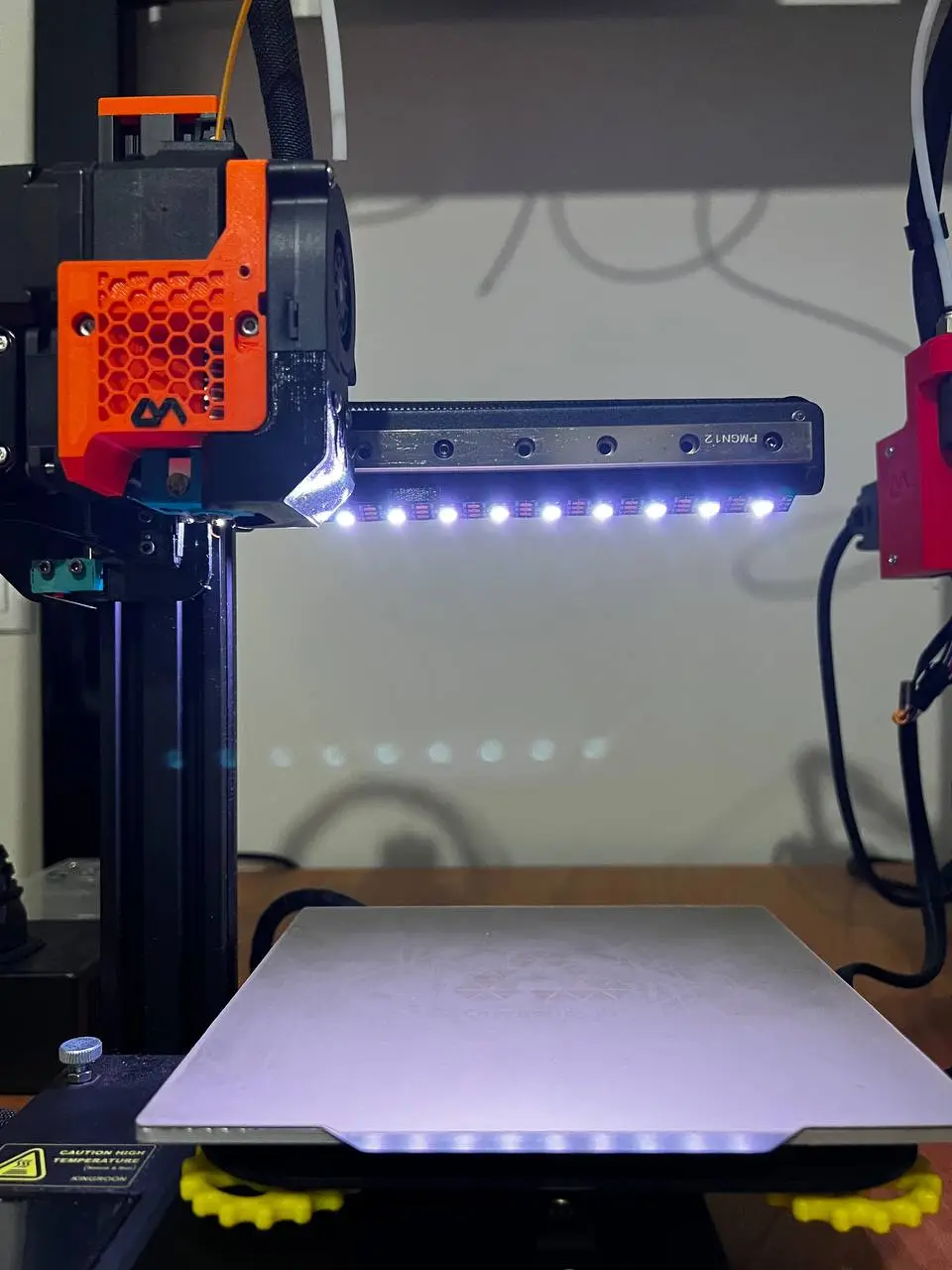

LED Bar for KP3S
LED bar for kingroon kp3s, in this case it is a 5v rgb bar but you could put a different type of led strip
I share the link to the led strip used. Its control is done by klipper
Barra led para la kingroon kp3s, en este caso he utilizado una barra led rgb a 5v. Se podría montar otro tipo de tira led.
Os comparto el link de los led que he utilizado. Las tiras led las estoy controlando con klipper
Other mods for Kingroon KP3s
############### LEDS ########
[neopixel Disco]pin: PB2
# The pin connected to the neopixel. This parameter must be
# provided.chain_count: 11
# The number of Neopixel chips that are "daisy chained" to the
# provided pin. The default is 1 (which indicates only a single
# Neopixel is connected to the pin).##color_order: GRB
# Set the pixel order required by the LED hardware. Options are GRB,
# RGB, GRBW, or RGBW. The default is GRB. SET_LED LED=Disco RED=0.093 GREEN=0.051 BLUE=0.093
initial_RED: 0.25
initial_GREEN: 0.25
initial_BLUE: 0.25
# Sets the initial LED color of the Neopixel. Each value should be
# between 0.0 and 1.0. The WHITE option is only available on RGBW
# LEDs. The default for each color is 0
