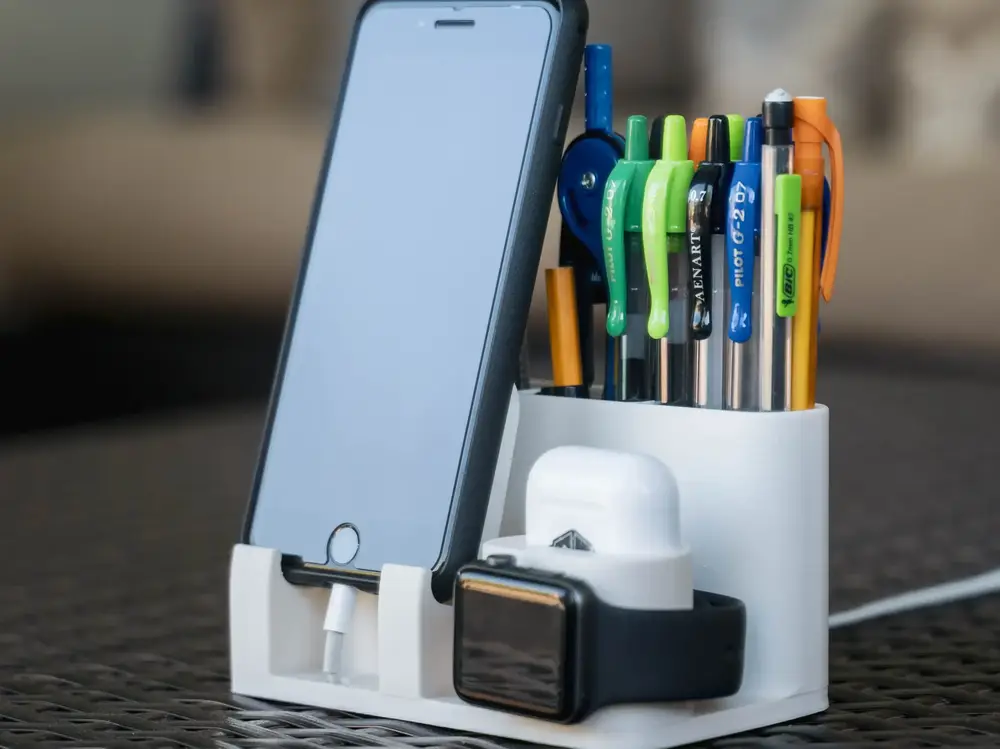

Multipurpose Apple Charging Dock

This dock was created as part of a Mechanical Engineering class at the University of Hawaii at Manoa. It is designed to accommodate multiple Apple devices and potentially other smartphones.

Design Issues Encountered

• Filleting Issues: Some edges couldn't be filleted due to mismatching curved surfaces. These areas were rebuilt in SolidWorks, and the current version has these fixes implemented.
• USB Cutout: The cutout for the USB Type-A connector at the bottom of the watch's wireless charger receptacle may be too tight. This might need widening after a test fit.
• iPhone Stand: The stand may block the speakers at the bottom of the iPhone. This can be mitigated by creating a narrower base for better speaker output.
• Pencil Cup: Redesign the pencil cup to have a shallower region for shorter writing utensils or office supplies.

Future Modifications

• Widen the USB cutout if needed after a test fit.
• Narrow the base of the iPhone stand to prevent blocking the speakers.
• Redesign the pencil cup for better accommodation of shorter items.

Benefits of 3D Printing

• Accessibility: 3D printing allows more people to access this design.
• Cost-Effective: It is much cheaper than injection-molded or machined manufactured counterparts.

Compatibility

• Designed For:
• iPhone 7 Plus with a slim case
• AirPods (1st or 2nd Gen)
• Apple Watch (Series 1 through 4, any display size)
• Potentially Fits:
• Any other smartphone with a case up to 15 mm thick

Print Settings

• Printer: Sovol SV01
• Rafts: No
• Supports: Yes
• Infill: 10%
• Filament Brand: Sovol
• Filament Color: White
• Filament Material: PLA

How to Proceed

1. Preparation: Ensure your Sovol SV01 printer is calibrated and ready for printing.
2. Load the File: Load the STL file into your slicer software and apply the recommended print settings.
3. Print: Begin printing with supports enabled to handle any overhangs or complex geometries.
4. Post-Processing:

• Test fit the USB Type-A connector. If too tight, widen the cutout accordingly.
• Test the iPhone stand to ensure it doesn't block the speakers. If it does, narrow the base as needed.
• Adjust the pencil cup design if you find that it doesn't adequately accommodate shorter writing utensils or office supplies.

By following these steps, you can successfully print and assemble this multi-functional dock for your Apple devices and potentially other smartphones.
