Personalized Travel Toothbrush Case
A compact travel case with a removable sliding lid to protect your toothbrush in a wash bag or backpack. The internal footprint is approximately 192 x 28 mm; check your toothbrush size before printing.

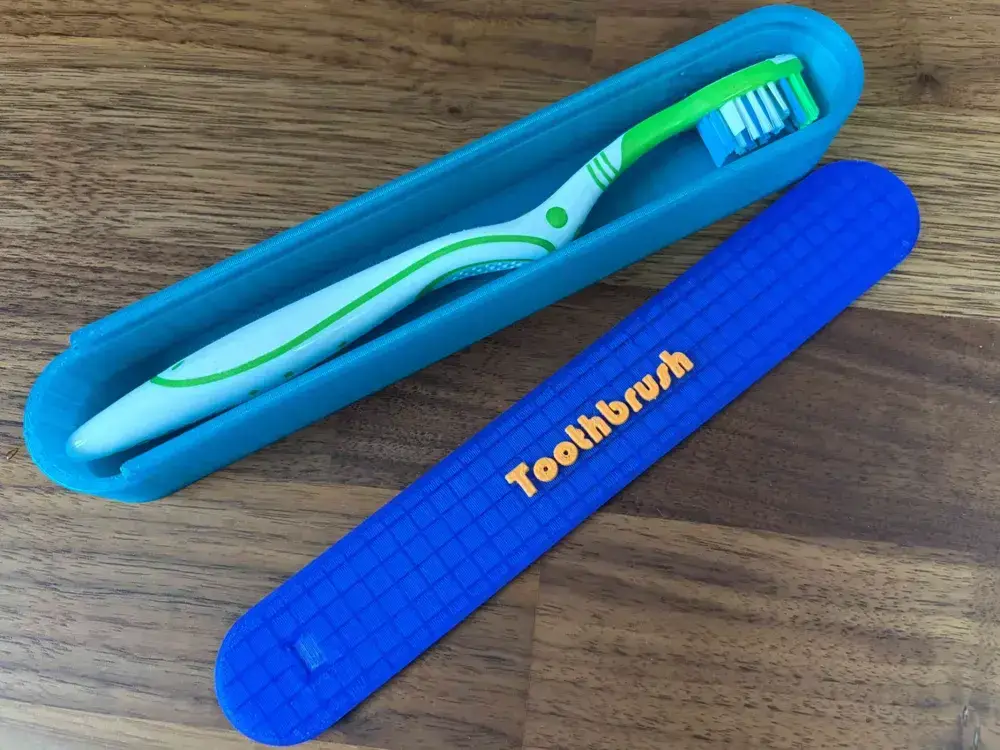

The Anycubic Slicer Next 3MF includes the case and lid on two separate plates, with an editable YOUR NAME text object on the lid. The supplied profile uses an engraved name and can be printed in one material. Photos show finished examples with raised lettering and different colors.
Customize the name in Anycubic Slicer Next:
1. Open the 3MF as a project.
2. Choose Objects and expand Plate 2 (Lid).
3. Select YOUR NAME under the lid, then click the Text / Emboss tool (T).
4. Change the name in the text box. Keep it inside the flat lid area and clear of the sliding edges; reduce the font height for a longer name.
5. Save the project and slice again before printing.
An additional ELEGOO Slicer project is included under Model Files. In ELEGOO Slicer, select YOUR NAME, open Text / Emboss (T), click the pencil beside the text, then Apply and Done after editing. Use the 3MF project to keep text editing. An STL export contains fixed geometry.
Print profile: Anycubic Kobra X, 0.4 mm nozzle, PLA, 0.12 mm layers, 2 walls and 15% gyroid infill. Two plates, no supports. Both plates were successfully sliced in Anycubic Slicer Next 2.0.0.3. Estimated total for the example name: about 2 h 41 min and 45 g.
Print the case and lid separately, then slide the lid into the case. No screws, glue or other hardware are required. Let the toothbrush dry before storing it.
You are prohibited from sharing, sub-licensing, selling, renting, hosting, transferring, or distributing the digital file or 3D printed versions of this object, as well as any other derivative work in either digital or physical form (including remixes).You are not allowed to use the objects in any manner that involves charging money or collecting fees without permission.
