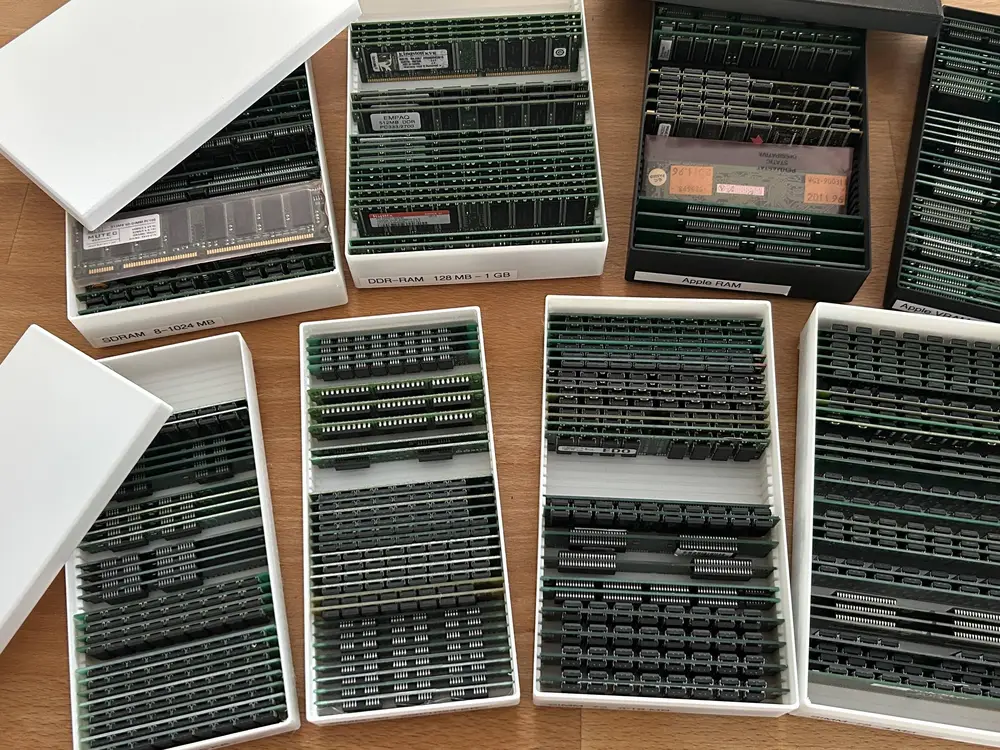

Storage boxes for memory modules

These are simple boxes for memory modules. I will add more sizes when I find some time to design these.

There is room for 38 modules. All boxes are approx. The boxes are all the same length (just under 20cm) but vary in width.

Following boxes are available:

• SIMM (30-pin) - 90 mm module size
• SIMM small (30 pin) - 90 mm module size (stores 19 modules only)
• SIMM (72 pin) - 10.8 mm module size
• SDRAM/DDR low profile - 133,35 mm module size (35 mm high, not suitable for modules with heat sinks)
• SO-DIMM - 67,6 mm module size
• SO-DIMM small - 67,6 mm module size (stores 19 modules only)
• Apple VRAM - 104 mm module size
• Apple RAM - 118 mm module size (e.g. Cache RAM)
• Simple Box (without grid)

Others are in preparation.

Note:

Standard PLA is not ESD compliant. If desired, the inside of the box can be coated with (permanent) antistatic spray or use conductive filament.

Approximately 60-100g of filament is needed per box (including the lid). No supports required.

Updates September 2026, 14th:

• added SDRAM / DDR-RAM
• added Apple VRAM
• added Apple RAM

Updates September 2026, 17th:

• added SO-DIMM
• added Simple Box
