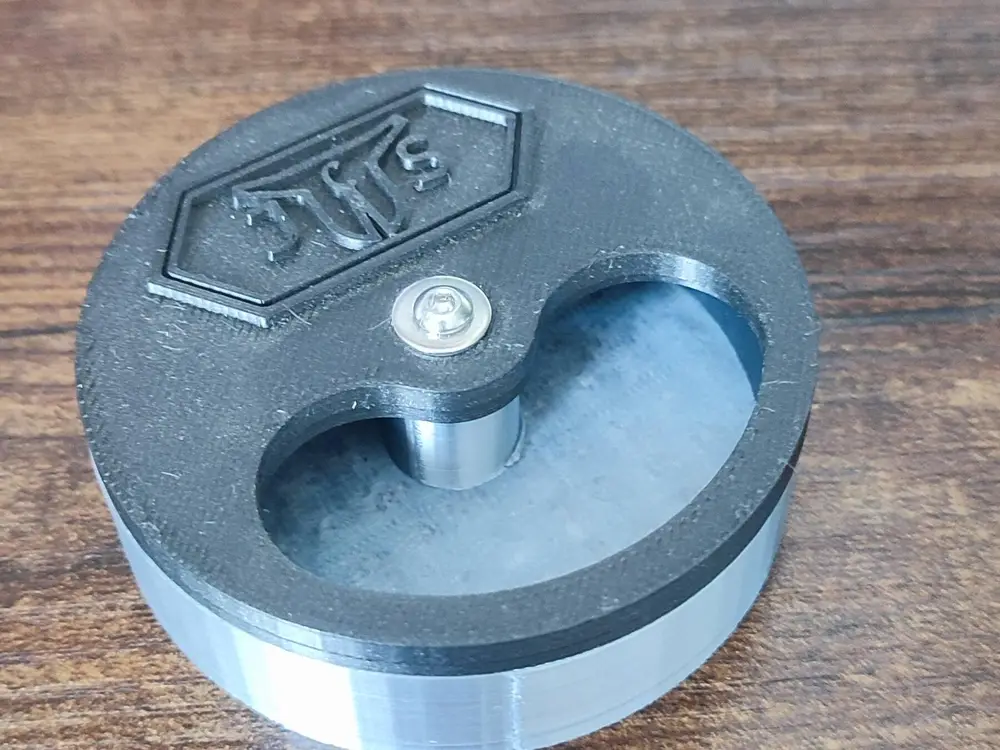

Swivel pocket ashtray
@Damien_3977574
Donate
Message
Follow
Recommended printing method
Add
0.12 layer height - 2 walls - 15% infill
Kobra 3
Kobra 2
、
Kobra S1
、
Kobra 4
、
Kobra X
、
Kobra 3 V2
、
Kobra 3 Max
、
Kobra 2 Max
、
Kobra 2 Pro
、
Kobra 2 Neo
、
Kobra 2 Plus
/ Plates:1
/ 2h44m
8
Share
Description
- Resealable pocket ashtray, capable of holding ashes and cigarette butts:
- Ø65 mm
- Height = 22.6 mm
- Tools required for assembly:
- 2 mm Allen key/flat head
- 1 M3x15 mini screw
- 1 M3 H nut
- 1 suitable washer
Assembly steps:
- Place the fixed cover on the tank (orientation defined by the angular key, which also acts as an anti-rotation device for the cover)
- Place the pivoting lid on top
- Place the nut in its cage provided under the tank (the part containing a support to be removed)
- Place the washer and the M3 screw
- Tighten the M3 screw using the Allen key (CAUTION!!! DO NOT OVERTIGHTEN OR THE PLASTIC PARTS MAY BE DAMAGED)
The ashtray can be printed in ASA, ABS, PETG…
Also tested in PLA and it holds up well to the heat of the ash.
Also available without logo on the swivel lid (see STLs)
