Twist-Lock Filament Hub Mount for Ender 3 V3 SE

I wanted to improve the filament setup on my Ender 3 V3 SE and make it cleaner, easier to manage, and easier to swap.

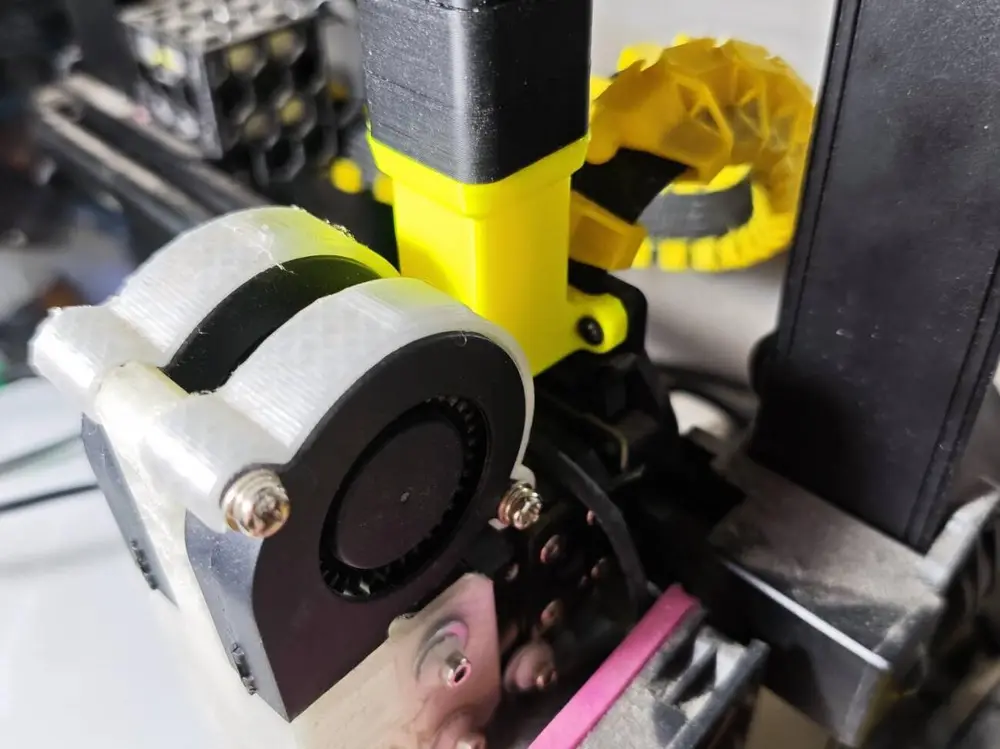

This model is a base mount for the Ender 3 V3 SE print head designed for a twist-lock quick-swap hub system. The idea was to adapt this type of interchangeable hub setup to the Ender 3 V3 SE while keeping the top section easy to remove and replace.

This upload includes only the main base part.

The interchangeable top parts for 9, 8, 5, 4, and 1 tube versions are not included here and should be downloaded from the original author’s model.

Two base versions are included:

• Short
• Long

These two versions were made for better compatibility with different print head modifications, since available space and mounting geometry can vary depending on the setup.

Features:

• Mounts to the Ender 3 V3 SE print head
• Provides a base for a twist-lock / quick-swap filament hub setup
• Makes the filament path cleaner and easier to manage
• Allows the top hub section to be changed without redesigning the whole mount
• Includes short and long versions for better compatibility with different print head mods

Important:

• This upload includes only the base/main mounting part
• The interchangeable 9 / 8 / 5 / 4 / 1 tube top sections should be downloaded from the original author’s model
• Choose the short or long version depending on your print head configuration
• Check alignment and clearance on your printer before final installation

Original hub concept and interchangeable top parts by the original author.

Shared with permission and with credit to the original design.
