NOTE: See additional print quality updates in the comments section below.

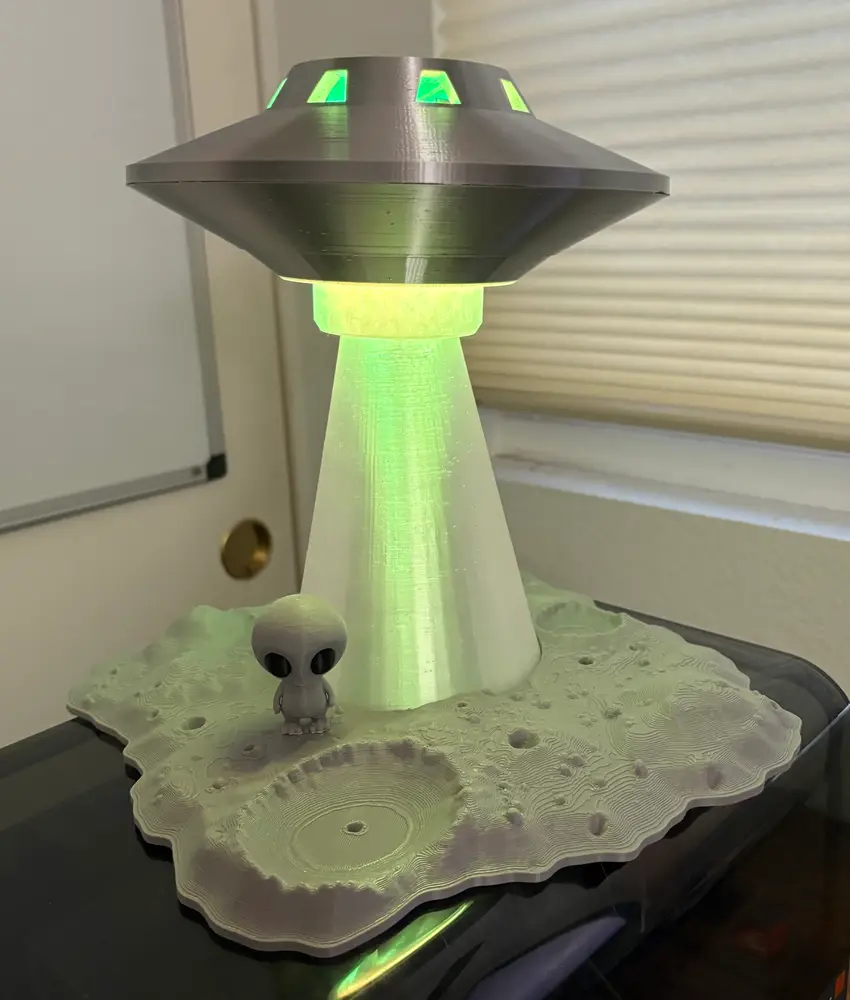

UFO Flying Saucer desk lamp accent light

-My original design, 100% hand measured, made from scratch in TinkerCAD

-Actual print photos shown, No AI was used.

-Entry for Anycubic Space Exploration Design Contest

VIDEO https://youtube.com/shorts/rrHA0LnDjpw

PRINTING

• -3 separate print profiles 1) the upper and lower discs 2) the stand and lower mount (transparent) 3) the inner puck sleeve
• -Discs default to .20 layer 8% gyroid infill, 25mm/sec outer wall, 100mm/sec inner/top layer speed, 220noz temp & 100% fan all layers, 7 walls, 8% infill/wall overlap, .5mm outer wall, .5mm inner wall.
• -Adjust your nozzle temperature settings according to your filament manufacturer recommended settings. This model defaults the discs to 220 nozzle temp.
• -Supports are pre-set per plate/model, no need to modify
• -I'm using Random Seam, feel free to use aligned seam
• -Simple design, 5 parts, designed for easy disassembly to recharge puck lights.
• -DO NOT USE GLUE, bottom stand threads into lower mount of UFO
• -Assembled dimensions: Base width 108mm, Saucer width 200mm, overall height approx 222mm
• -Currently Testing - Scarf joint seam, PLA Silk, other quality settings

Use Transparent PETG/PLA

• -Ray beam (stand)
• -Main base

Use Grey/Silver PETG/PLA

• -Top disc
• -Bottom disc
• -Puck light sleeve

Use these PUCK LIGHTS (USB-C rechargeable & remote controlled)

Amazon Affiliate Link: https://link.amazon/B05CNFGdb

3.15"L x 3.15"W x 0.59"H

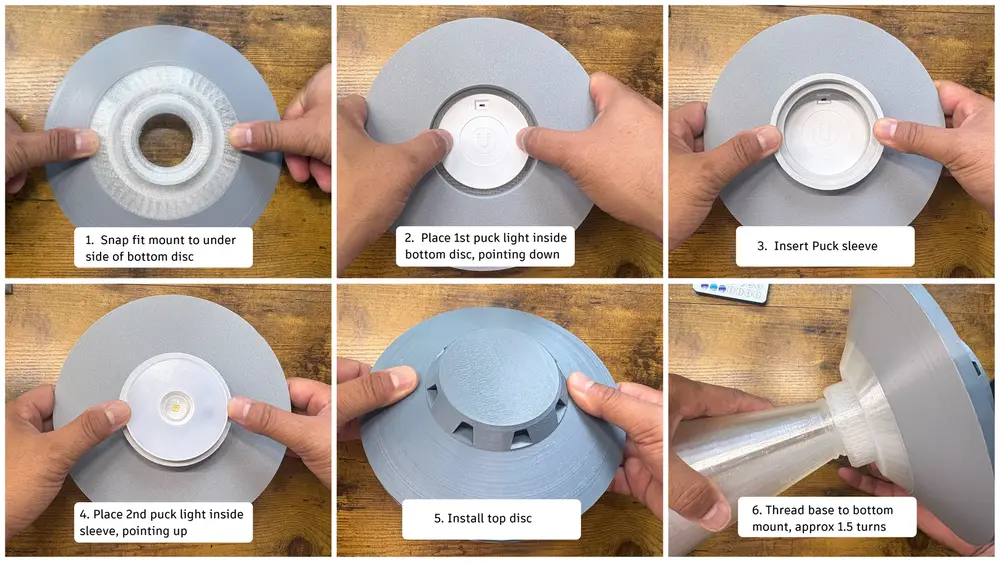

ASSEMBLY

NEW: Moon base slab (separate download)

https://www.makeronline.com/en/model/Moon%20surface%20base%20slab%20for%20UFO%20desk%20lamp%20accent%20light/339463.html?trackModuleType=10

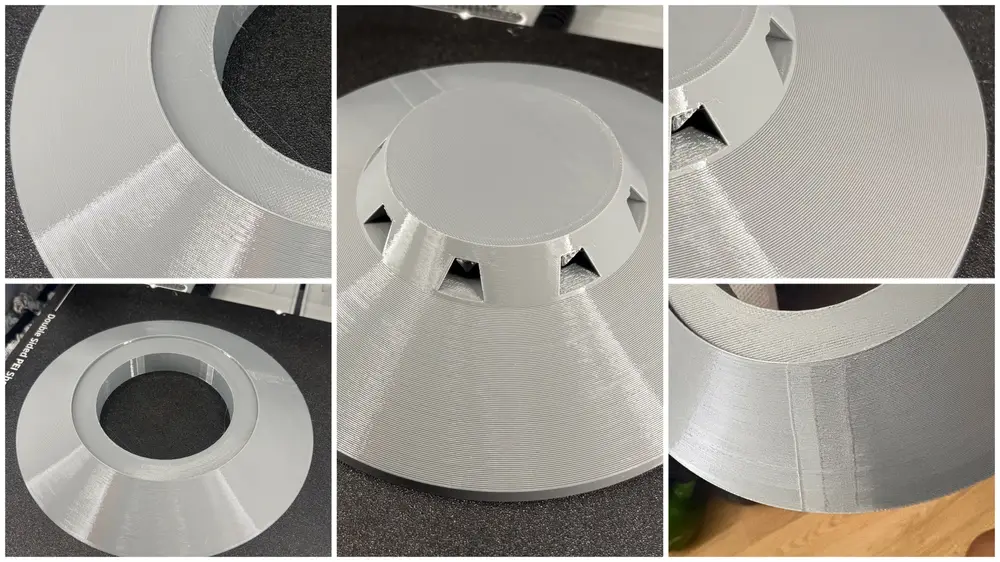

Eryone Silk Silver PLA shown below (random seam)

https://link.amazon/B0hLdxM5r

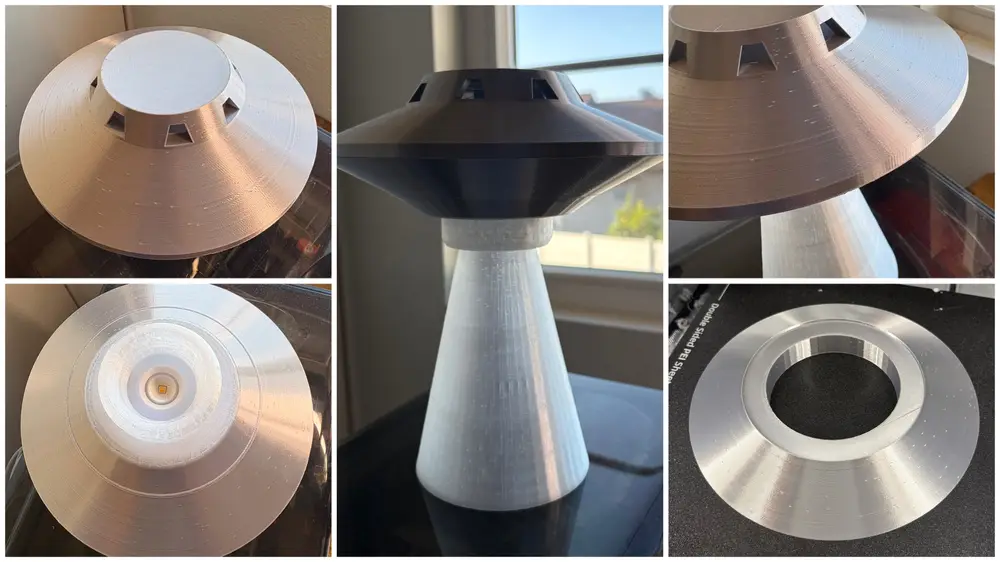

Anycubic PETG Below (scarf seam)

https://link.amazon/B0gJstXjf

Thank you for your interest and support!
