Utility XXL - case

Hello everyone,

There were many requests after the XL case to make an even bigger model if possible, and here we present it to you.

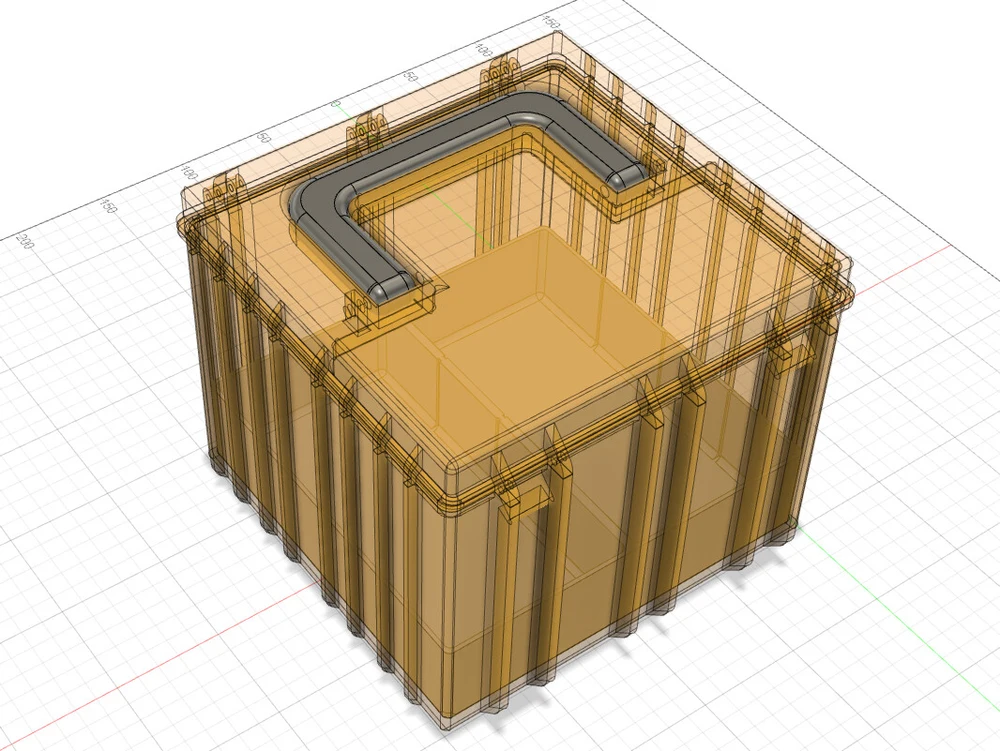

XXL version of our modular cases.

The internal width and length dimensions are the same as on the XL case, except that on this case there are 3 rows of internal containers.

Inner dimensions are 194x168,5mm and height 145,2mm.

Big advantage is that the inner boxes are compatible with those of the smaller models

Simple print, for handle you need support.

All parts are completely printed with PLA, only the gasket needs to be printed with TPU in order to close smooth and seal nicely.

The inner containers are made to fit tightly inside, if you want more space I recommend to reduce the model of the inner boxes a bit.

Recommend: Dropp the inserts to a scale of 98% just makes them easier to get in and out of the box

To assemble it, you need:

6pcs M3 nuts

2 pcs of screws M3x32mm

3pcs of screws M3x20mm

For assemble handle you need:

2pcs of screws M5x32mm

2pcs M5 nuts

I hope you like it, and enjoy printing and using this useful case.

Feel free to put your pictures of printed models in comments. :D
