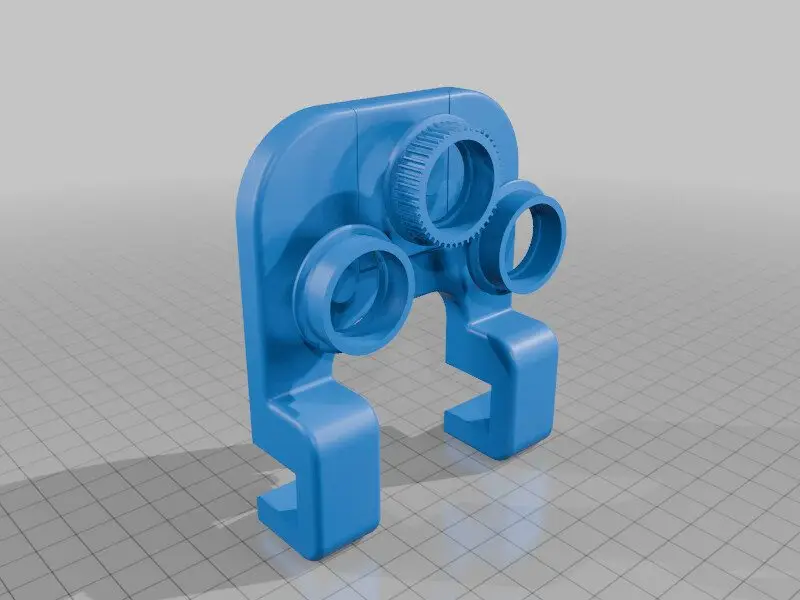

Z-Belt Tensioner for Anycubic Kobra 3
Kobra 3
Kobra 2
、
Kobra S1
、
Kobra 4
、
Kobra X
、
Kobra 3 V2
、
Kobra 3 Max
、
Kobra 2 Max
、
Kobra 2 Pro
、
Kobra 2 Neo
、
Kobra 2 Plus
/ Plates:1
/ 1h 51m 52s
12
Share
Description
The new Anycubic Kobra 3 has no way to tension the Z-Belt, so I've designed this Clip-On and adjustable tensioner. To complete this thing after print you'll need: - 3 bearings 608RS (or similar) - 1 M4 screw and nut - 1 Timing Belt GT2 6mm, closed loop, length 750mm
Hint: Install the tensioner on the right side of the x-bar and use the V2 Parts 2 and 3, if your Z-belt tends to run off the pulleys.
Hint: After installation run a full autolevel procedure to get a new mesh in your printer.
#Kobra 3 Combo Customization#
