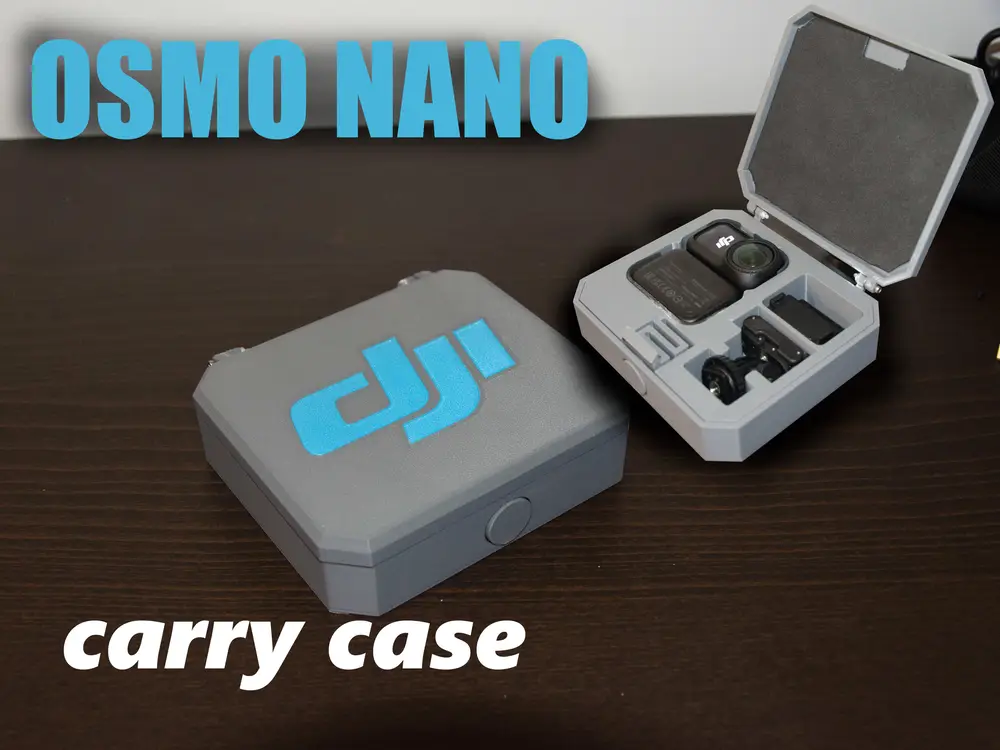

DJI Osmo Nano: All-In-One Compact Carry Case

Keep your DJI Osmo Nano, its had clip, and a 3rd party go-pro adapter safe, organized and ready to bring on your adventures!

This model features a multi-color top with an integrated DJI logo.

Key Features

• Custom-Fit Compartments: Specifically designed to hold:
• DJI Osmo Nano (stored inside its original protective cover).
• Vision Dock.
• Official Hat Clip.
• 3rd Party GoPro Mount Adapter.
• Anti-Rattle Design: Integrated space for foam padding to ensure your gear stays silent and scratch-free.

Hardware & Materials Required

To fully assemble this case, you will need the following:

Bolts: 2x M2.5 bolts 16mm

Nuts: 2x M2.5 Nuts

Washers(optional): 2x M2.5 washers

Padding: 2mm thick craft foam

Adhesive: Superglue (for foam)

Print Settings

This model is optimized for fast, functional printing while maintaining a great aesthetic, if possible use my print profile.

if not, use 0.28mm layers and once you added the top cover split into parts and colour the DJI logo.

PLA or PETG

Assembly Instructions

1. Foam Lining: Cut your 2mm foam to fit the interior recesses of the top and bottom shells. Use a small amount of superglue to secure them. This prevents scratching and stops the camera from rattling.(see documentation)
2. Hinge Assembly: Align the 2 parts of the case and place a washer in-between and insert your bolts through the hinge mechanism.
3. Secure: Thread the nuts onto the ends of the bolts. Do not over-tighten; ensure the hinge moves smoothly. Then glue the nut in place to prevent loosening
4. Load Up: place your Osmo Nano (in its cover) and accessories into their dedicated slots!
