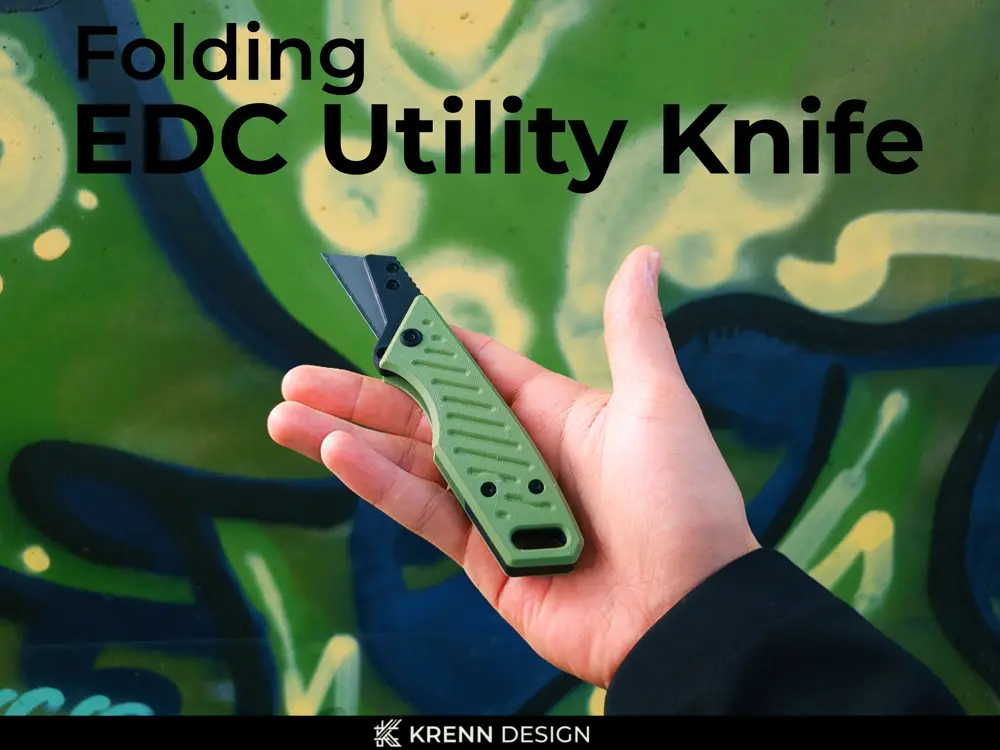

Folding EDC Utility Knife

A compact, practical, and functional friction folder designed for smooth daily use and easy assembly.

Hardware Required:

• 9x M3x5mm (DIN 7984 or ISO 7380) or BT3x5mm Screws (AA108) (Screw head height must not exceed 2mm)

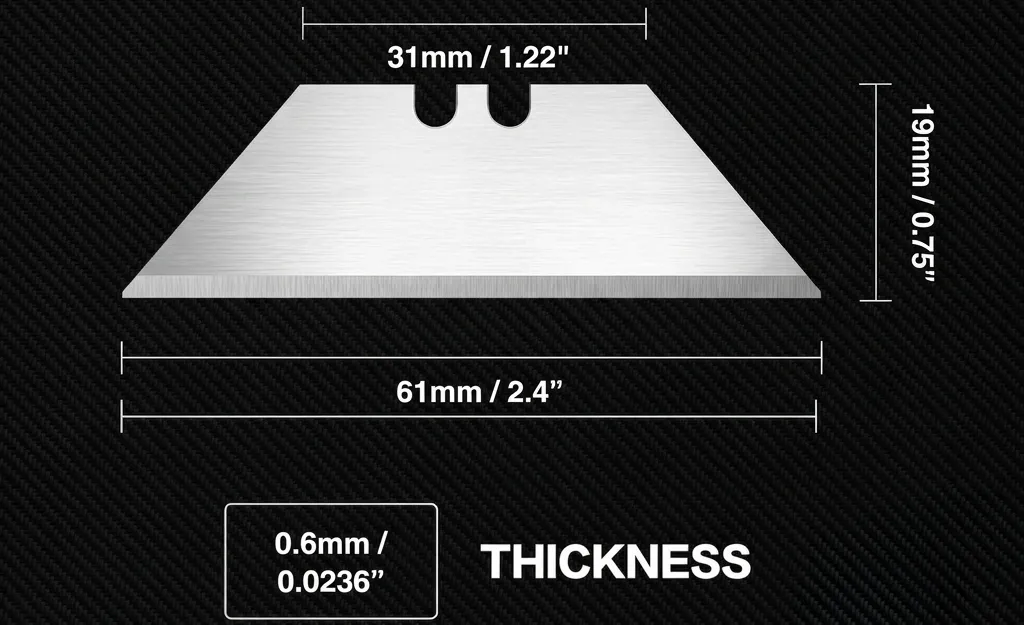

• 1x Standard Utility Blade (Trapezoid blade)

Assembly Instructions:

1. Place the standard utility blade into the Blade Cover Bottom and secure the Blade Cover Top using 4x M3x5 screws.
2. Attach the Grip Right to the Middle Frame using 2x M3x5 screws.
3. Insert the Pin Bottom into the Grip Right, aligning the notches, and mount the assembled blade mechanism onto it.
4. Align and secure the Grip Left using 2x M3x5 screws.
5. Fasten the Pin Top with the final 1x M3x5 screw to complete the assembly.
