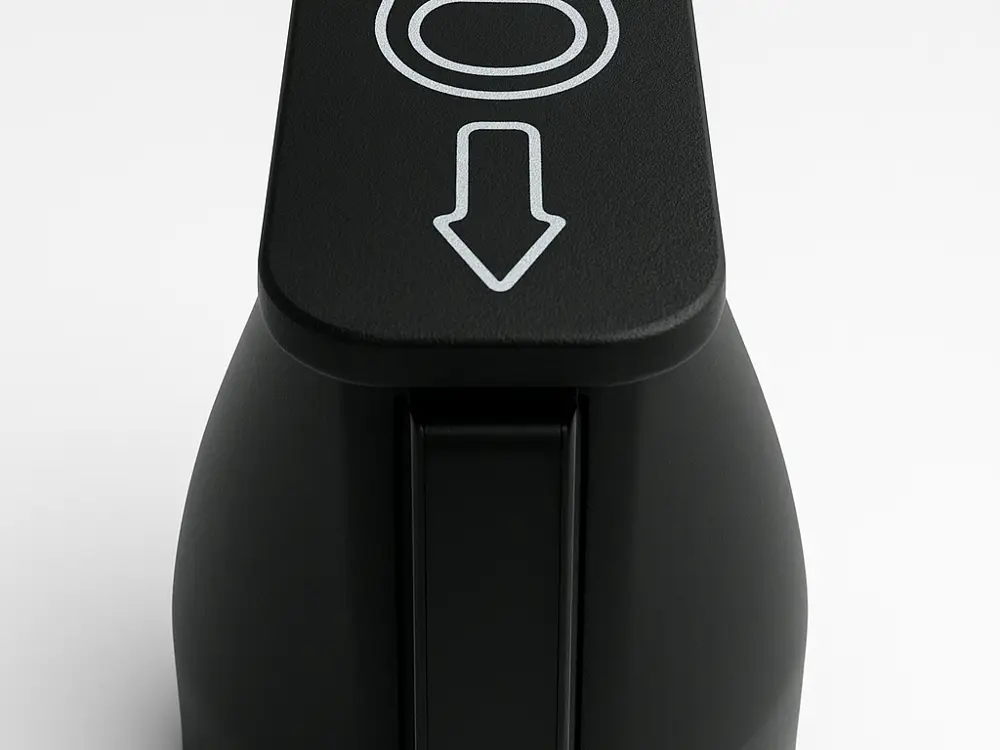

Can Opener “Pistol Style” — Trigger-Activated Pull Tab Opener

Short Description

3D printed tool designed to open can tabs easily. Just hook the tab into the slot, point the arrow toward the lid, and press the trigger-like tab underneath — just like pulling the trigger of a toy gun. It allows you to open cans with one hand and provides mechanical leverage so you don’t hurt your nails or fingers.

Main Features

• Ergonomic handle-style grip for better control.
• Trigger tab located beneath the arrow for one-finger operation.
• Wide contact surface to prevent bending or breaking the can tab.
• Fully 3D printable (no metal parts required).
• Designed to maximize leverage and comfort while minimizing effort.

Recommended Materials

• PLA for everyday home use (easy to print).
• PETG or ABS for stronger, more durable results.
• Avoid very brittle materials (e.g. some resins) if you need flexibility.

Suggested Print Settings

• Layer height: 0.16–0.24 mm (0.2 mm recommended)
• Infill: 20–40% (increase to 50% for extra stiffness)
• Walls/Perimeters: 3 (or 1.2 mm with a 0.4 mm nozzle)
• Supports: Minimal — orient the base flat on the build plate to avoid supports around the trigger area
• Adhesion: Brim or raft if your printer struggles with tall parts
• Nozzle: 0.4 mm standard
• Temperatures: Adjust according to your chosen material

Post-Processing

• Lightly sand the contact edges if needed.
• Round off sharp corners for better comfort.
• Optionally apply food-safe coating to the handle (avoid coating the part that touches the can directly).

How to Use

1. Insert the can tab into the slot at the front, following the direction of the arrow.
2. Hold the handle firmly.
3. Press the trigger underneath (as if firing a toy gun). The lever motion will lift the tab.
4. Carefully remove the lid. Avoid using with damaged or pressurized cans.

Safety Notes

• Do not use on rusted or highly deformed cans.
• Avoid excessive force — this is a leverage tool, not a pry bar.
• Keep out of reach of small children if used incorrectly.

Customization

• The model includes an ergonomic handle that can be scaled for hand size.
• You can resize the model slightly, but keep proportions for best leverage performance.
