Power Bank Support for Seestar S50

This support is designed specifically to mount an INIU power bank directly onto the Seestar S50, providing a clean, stable, and cable-efficient power solution during observations and imaging sessions.

The support has been engineered to follow the geometry of the Seestar S50 base while keeping material usage under control and ensuring reliable mechanical stability. With this solution, you can finally say goodbye to power cables wrapped around the tripod or dangling near the mount.

Design and Compatibility

This model has been specifically designed to fit the following power bank:

INIU Power Bank, 20000mAh 22.5W Powerbank Fast Charging, USB-C Input & Output, PD3.0 QC4.0 Portable Charger

The internal dimensions, cut-outs, and overall height are optimized exclusively for this power bank model to guarantee a precise and secure fit.

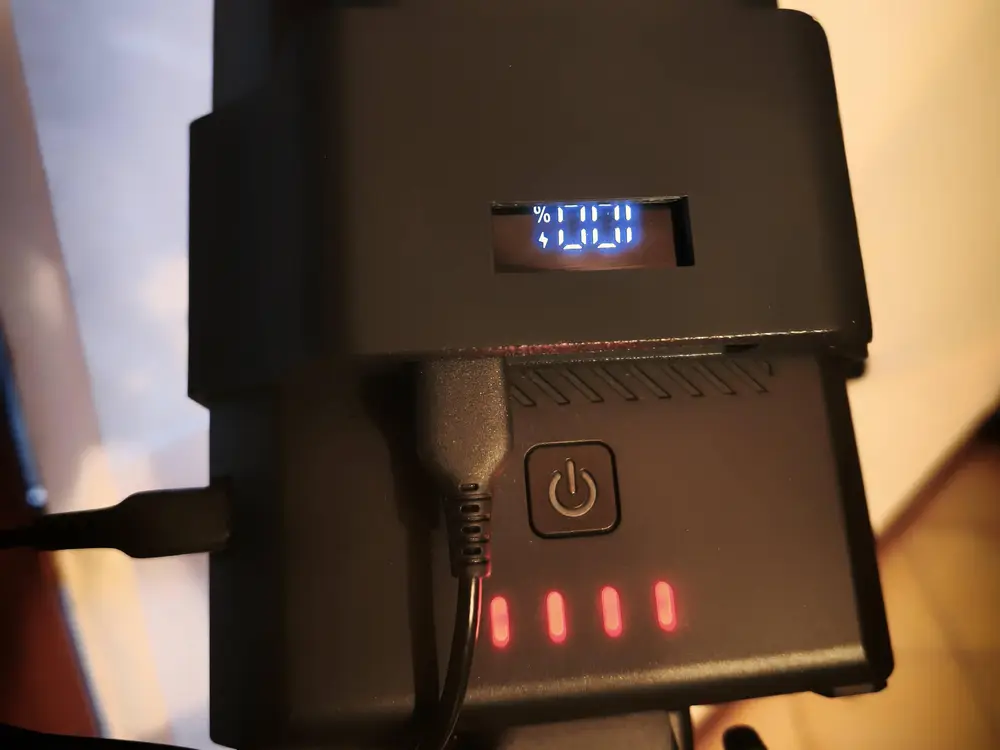

In all versions, the maximum height of the support allows the power bank display to remain visible even when the power bank is inserted in its normal (upright) orientation, so charge percentage and status icons can always be checked at a glance.

Five Available Versions

To suit different preferences and use cases, the support is available in five distinct versions:

1. Open bottom, minimal reinforcement

• Minimal structural reinforcement at the Seestar S50 attachment point to reduce material usage
• Open bottom design
• Front window to view remaining battery charge
• Allows routing of short (≈25 cm) cables from the bottom
• Suitable for inserting the power bank upside down if preferred

1. Closed bottom with window

• Bottom fully closed
• Front window to monitor battery charge
• Clean look while maintaining display visibility

1. Fully closed, no window

• Bottom closed
• No front window
• Intended for users who prefer to keep the power bank in a normal upright position without visual access to the display

1. Open bottom with full structural reinforcement

• Same open bottom and window configuration as version 1
• Continuous structural reinforcement along the entire support
• Higher material usage, increased rigidity

1. Fully closed and reinforced

• Closed bottom
• No window
• Full-length structural reinforcement
• Maximum strength and durability

Printing Recommendations

• Material: PLA-PETG
• Nozzle: 0.4 mm
• Layer height: 0.2 mm
• Infill: Gyroid 10%
• Walls: 2 perimeters
• Supports: Only for windowed versions Normal > Touching the model

Practical Benefits

• Clean and stable power solution for Seestar S50
• No loose or tangled cables around the base
• Short cable routing directly from the power bank
• Multiple configurations to balance strength, visibility, and material usage
• Purpose-built for a specific, high-performance power bank

This support is a practical accessory for anyone using the Seestar S50 with an external battery and looking for a more organized, reliable, and aesthetically clean setup.
