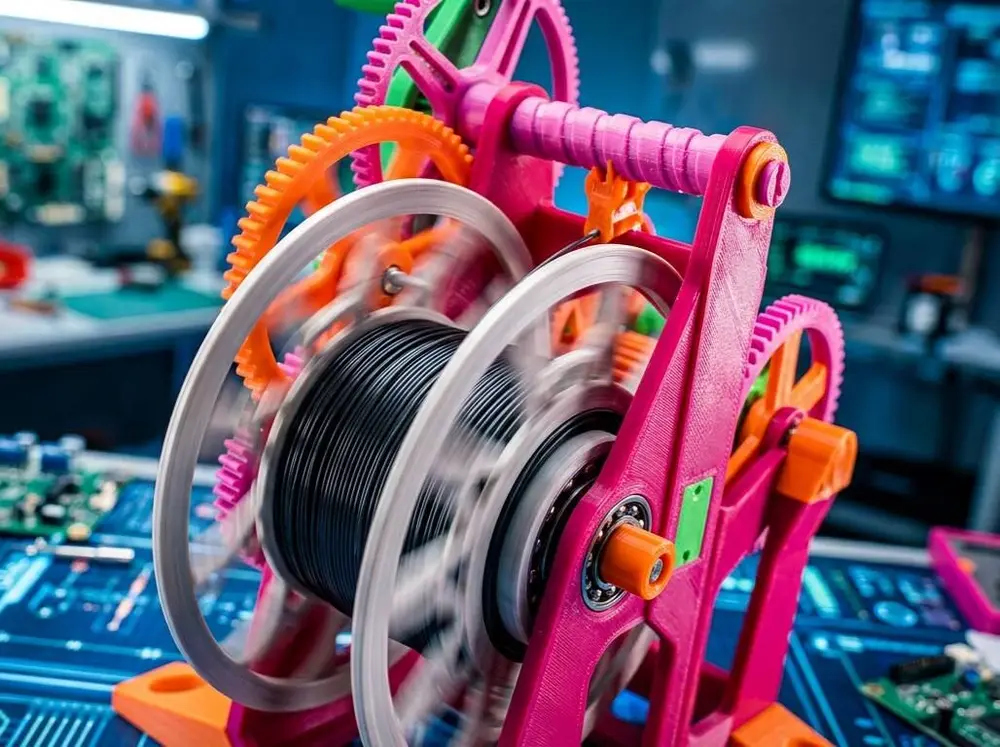

Turbo Spool Winder with bearings

While looking for a filament winder, I found an excellent one, this one from "@DaveBeau".

But verything can be improved, so I made a few changes.

• The base was a two-piece design; now it's a single, reinforced piece, and the print no longer fails. (No more joints and glue.)
• It used to require six 6901 bearings and two 6802 bearings; now it works with eight 6802 bearings. (Fewer parts to buy and easier assembly, although this meant modifying all the axes.)
• Added two feet for greater stability.
• Added shims to center the receiving spool.
• Added a wrench to remove the spool adapters.

Don't forget to PAUSE he process to insert the bearings onto the axles. 15mm bearings, type 6802 (15*24*5)

- Worm shaft stop at level 127

- Receiving shaft stop at level 92

- Donor shaft stop at level 66

You will need five more 6802 bearings:

- 2 for the idler gear

- 1 to be inserted directly into the winder body for the tip of the worm shaft.

- 2 to be inserted into the winder body for both the receiving shaft and the donor shaft tips.

Assembly video here:

You can see it in action here.
