Ultimate Kobra X Overhead 4-Spool Dryer & ACE 2 Pro Mount

Ultimate Kobra X Overhead 4-Spool Dryer Mount

GUIDE NOW AVAILABLE!!

✅ ACE 2 Pro (only) Mount Accessory now LIVE!

✅ ALL SYSTEMS GO: Version 1.1 is LIVE! (Full Z-Height Restored)

I’ve just uploaded the final, redesigned files for Plate 06 (The Clasp) and Plates 08 & 09 (The T-Bar w/ Integrated Light).

After my initial clearance tests didn't meet my standards, I went back to the drawing board and remodeled both components from scratch. I’m happy to report that the new geometry provides a perfect, interference-free path for the toolhead all the way to the 260mm Z-limit.

What’s New in v1.1:

• Plate 06 (The Clasp): Completely slimmed down and reinforced. It now hugs the frame tighter than ever, staying completely out of the way of the X-gantry rollers.
• Plate 08 & 09 (T-Bar Light Mount): Redesigned for a lower profile without sacrificing illumination. You get the overhead light you need without losing the build volume you paid for.

Status: * ALL PLATES (01–09) are now verified and ready for printing.

• If you previously downloaded the "Work in Progress" versions of 06 or 08, please delete those and grab the v1.1 files for the best experience.

Thanks for sticking with me while I dialed this in. Now, let’s see those overhead 4-spool setups!

— AG DESIGN

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Compatible with Creality Space Pi x4, Anycubic ACE Pro, and more!

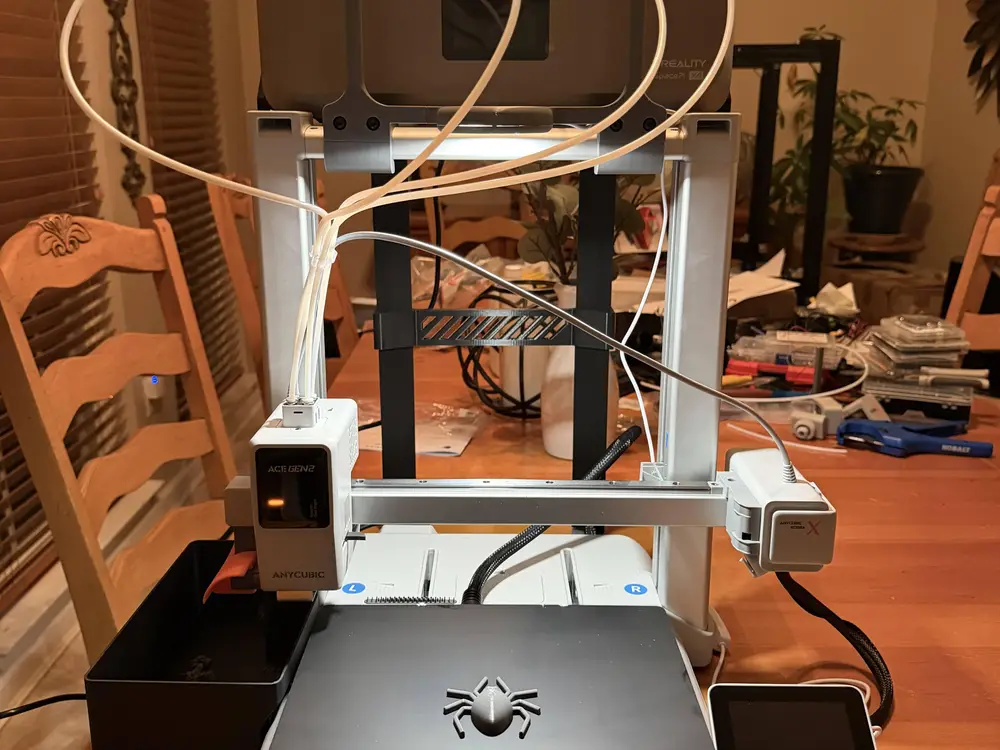

Stop letting your filament dryer hog your entire workbench. This heavy-duty overhead mount is the definitive space-saving solution for the Anycubic Kobra X. It moves your 4-spool dryer directly above the printer frame, optimizing your footprint and creating a cleaner, more direct filament path.

The Design

Engineered for the 10kg+ (22lb) static load of a fully loaded Creality Space Pi x4 or Anycubic ACE Pro, this mount features a reinforced "bridge" design that distributes weight evenly across the Kobra X’s aluminum extrusions.

• Integrated PTFE Guides: Built-in mounting points to manage all 4 filament lines.
• Low-Profile Footprint: Reclaims over 2 square feet of desk space.
• Universal Platform: The top plate is designed to accommodate the rubber feet of most major 4-spool drying stations.
•


Recommended Print Settings (Structural)

Because this part holds significant weight over your machine, Standard PLA settings are NOT recommended.

• Material: PETG, ASA, or ABS (Required for heat resistance and creep resistance).
• Wall Loops: Walls (This is more important than infill for the vertical risers).
• Infill: 20% (Gyroid).
• Top/Bottom Layers: 4 Layers.
• Orientation: See 3MF file

Hardware Needed

• M4x10 (4) Legs
• M4x8 (4) Light Bar
• M3x10 (4)
• M3x8 (3)
• PTFE Tubing: To run from the dryer to the integrated guides.
• Super Glue
• LED Light
• PTFE Connectors
• Optional: USB Hub

Complete the "Kobra X Pro" Setup

This mount was designed to work in tandem with my other Kobra X upgrades. Check out the "Kobra Eye" Camera Relocation Mod [Link Here] to complete your overhead monitoring setup!

DESIGNED BY: AG DESIGN Please share your makes and let me know which dryer you’re running! If you find this model helpful, a "Like" and a "Download" go a long way.
