ACE GEN 2 Kobra X print head service jig fixture and parts tray
WHAT IS THIS?

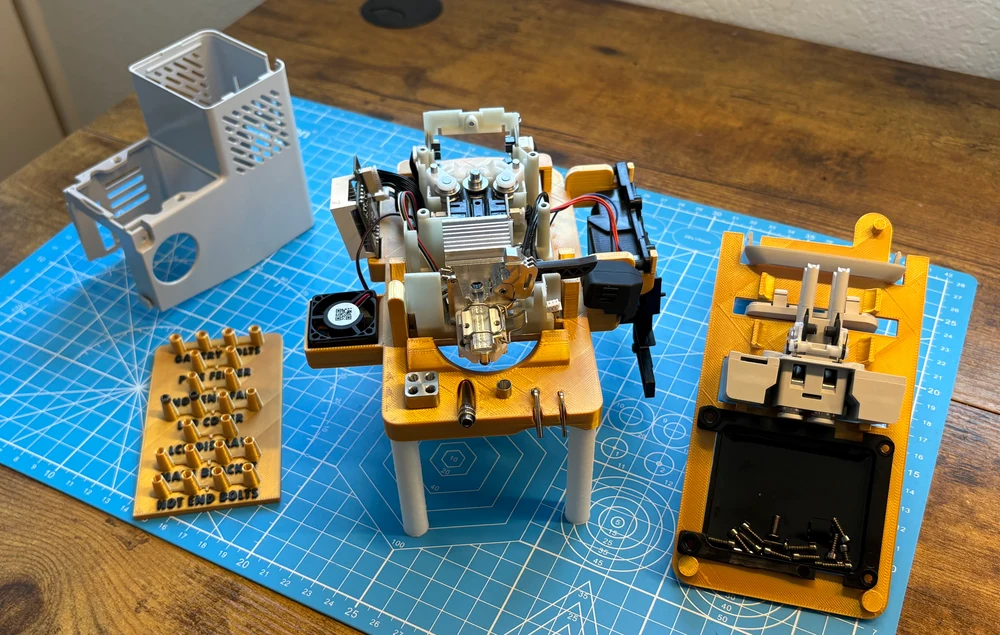

This is the original service jig for the ACE GEN2 Kobra X printhead. Designed for easy manipulation and articulation during toolhead maintenance.
This is my creation offered to the Kobra X community. 100% measured by hand, designed from scratch in TinkerCAD.
IMPORTANT: Watch HOW TO VIDEO before printing!
ASSEMBLY VIDEO
NEW: Full disassembly, cleaning and assembly video
https://www.youtube.com/watch?v=4IvlbJ3bDQE
WHO IS THIS FOR?
-People with OCD
-People who want a stable platform for servicing the ACE GEN2 printhead
-Ideal for clog maintenance
-Ideal for routine maintenance
FACT:
Download and print this now, because if you get a clog later, then you can't print it.
Better to have it and not need it, than to need it and not have it.
WHY IS THIS RAD?
- Have both hands available, full open view.
- Rotate 360 without fumbling with the assembly.
- Articulate printhead with ease.
- Minimize touching cables, harnesses, solder joints and sensors.
- 60mm leg height, elevates printhead prevents mainboard from hitting desk when installed.
- Bolt Tray screw organizer included, customizable in Slicer (separate .3mf).
- Convenient storage kit (download the Storage Tray Back).
- Sufficient for most basic service scenarios - clog clearing, lubrication, inspection.
FITMENT
- ALLOW ALL PARTS TO COOL BEFORE FITTING
- DO NOT FORCE ANYTHING.
- If the fit is too tight make some manual adjustments.
- Clean up the edges with a razor blade or sandpaper.
- I am not responsible if you damage your printhead.
I'm the original creator of this jig. Feel free to personalize.
NO REMIXING PLEASE
UPDATES / CHANGE LOG
I review everyone's feedback! While I can't please everyone, I try to make changes to improve reliability and feature set of the jig.
08/13/2026 - BUG found when downloading Kobra 4 profile and ACE2PRO. Reverted default 3mf to Kobra X and 1-color.
06/23/2026 - +Bolt Tray Greek, thank you Eurik
06/22/2026 - +Bolt Tray Spanish, thank you PrintsnCode
06/19/2026 - +Bolt Tray Portuguese, thank you Moshinho
06/17/2026 - +Bolt Tray Chinese, thank you Spring!
06/16/2026 - +Bolt Tray German, thank you EMI!
06/15/2026 - All files consolidated to one .3mf file.
06/12/2026 - LEGS: 50mm legs removed. Only 60mm legs provided. Insertion peg scaled up 1%. Insertion peg chamfered.
5/19/2026 - Main Jig1.02 .3mf uploaded, fixes described below
-Side hanger hook too thin, could break if nudged. 2.5x thicker hook and widened gap for more play.
-Widened mounting notch for LCD display, minor fix
-Rolled edge to fan mount, minor fix
-Took sharp edge off half moon under nozzle, minor fix
5/19/2026 - Storage Tray Back .3mf added for download
5/18/2026 - Customizable Bolt tray (separate .3mf added). Customize font, size, color, etc (in Slicer)
5/17/2026 - Screw tray is now included in the 3mf file. Download the latest .3mf file and print separately if needed.
5/17/2026 - Main jig edits: Cam holder is now full thru hole, LCD display holder and fan holder tolerances adjusted.
Thank you for your interest and support!
