Dragon boat Automata 龙舟 机巧装置

龙舟 机巧装置

After assembly, the dimensions are approximately 160*60*132mm.

组装后 尺寸约 160*60*132mm

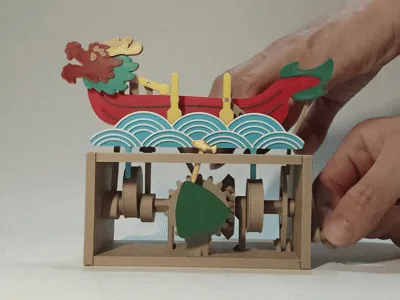

The head, tail, drumstick, oar, water waves, small fish, and zongzi are movable.

Please rotate clockwise (backward); rotating in the opposite direction will jam the drumstick's crankshaft.

(Of course, you can install the drumstick's crankshaft in reverse, meaning counterclockwise rotation. Actually, this may make the oar and drumstick work together better. The final product may not exactly match my test results.....)

头、尾、鼓槌、船桨、水波、小鱼、粽子可动

请顺时针（向后）旋转，反转会被鼓槌的曲轴卡死

（当然 可以反装鼓槌的曲轴，就是逆时针转动，其实这样船桨和鼓槌配合好像更好，最好的成品和我测试好像不太一样…..)

 Wooden PLA and other materials have different shrinkage rates, so tolerances are relatively balanced. Using wood may be slightly tight, and some parts may need a bit of sanding or hole widening.

木质PLA和其他材料的收缩率差异有点大，公差相对折中，如使用木质会略紧，部分需要稍加打磨或扩孔

Non-printable parts require 4 M2*6 screws and 1 M2.5*10 screw. Please do not overtighten the screws.

非打印件 需要M2*6螺丝 4个 M2.5*10螺丝1个，螺丝请不要拧死

组装示意如下

The green line means it needs to be aligned, and the red circle marks where a hole is left. If it's too loose, you can use glue or insert a piece of filament.

绿线表示需要对齐，红圈位置留了孔，如果过松，可以胶水或者插一段耗材丝

The top cover needs to be inserted horizontally first and then turned 90 degrees, the tail rod is similar.

顶盖需要先横向插入再转90度，尾巴杆类似
