Description

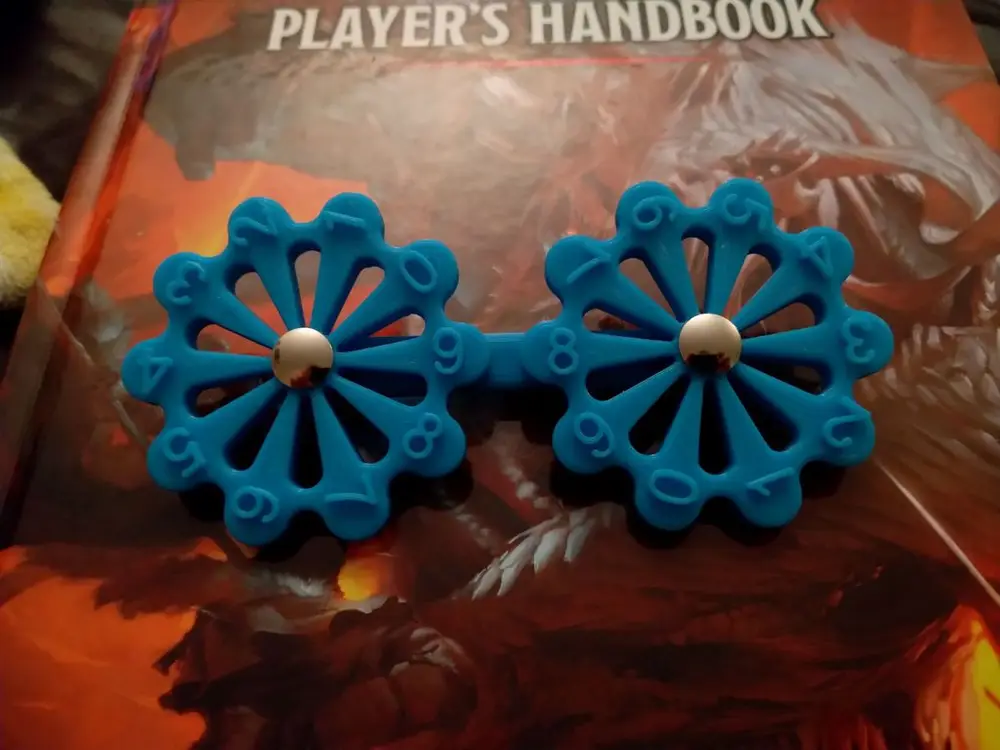

This is a nice simple magnetic Life Counter that I created to D&D. The magnets allow it to click into place.

Requires:

Qty 22 1/8"x 1/8" Rod magnets

Qty 2 5mm dia, 1/2" long Chicago Screws

(sorry, I like to buy local for my projects so I don't have any amazon links)

Assembly Instructions:

simply insert the magnets into the holes (Watch out for polarity!) The Ones on the wheels and the ones on the connector need to be opposite polarity so they lock in.
my magnets press-fit in, but if you need, use a small amount of CA Glue.
Use the chicago screws to fasten the wheels to the connector. Magnets will align on the inside.

If you are more ambitious than I am, then use the pause at layer feature of your slicer to make the numbers a different colour!

Print settings:

Material: PLA

Layer Height: 0.2mm

Perimeters: 2

infill: 10%
