Creator AMS Cardboard Spool Adapter - 198mm

Wraps the edges of a Creator 1kg cardboard spool with 198mm diameter

Features

• Improves contact and rotation in the AMS
• Protective layer to prevent cardboard from deteriorating and cardboard dust damaging the AMS

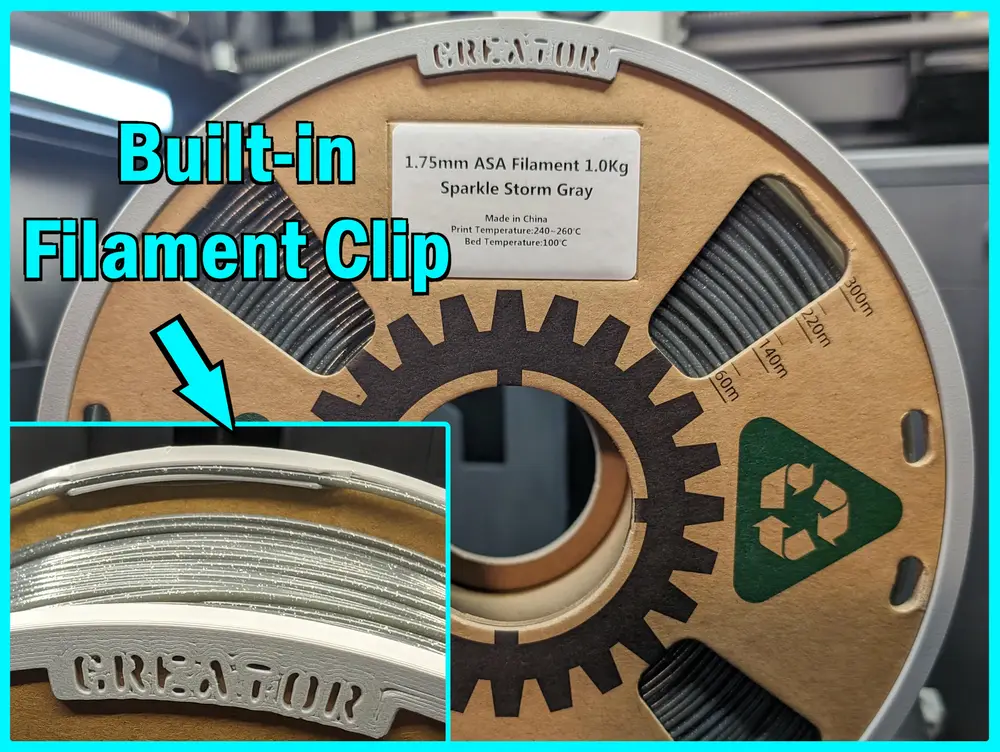

• Integrated filament clip (optional)
• Name clearly visible to identify what spool it is for
• Sturdy design - I found that many other designs were too thin and broke easily when removed.
• Avoids blocking filament holes in the cardboard spool

Instructions

• Measure your spool first to ensure the diameter matches the adapter (198mm)
• The ‘right' ring has the filament clip must be on the right side when the spool is in the AMS.
• If you don't need the filament clip, print two ‘left’ rings.
• See photos

Notes

• Material: I recommend PETG or PHA as they is more flexible and less prone to breakage.

Other Brands

• Beyond Plastic 199x3mm
• California Filament 199x3.5mm
• Creator 198mm
• Elegoo Rapid 198mm
• Eryone 197mm

-

Feedback letting me know how your print went would be greatly appreciated.
