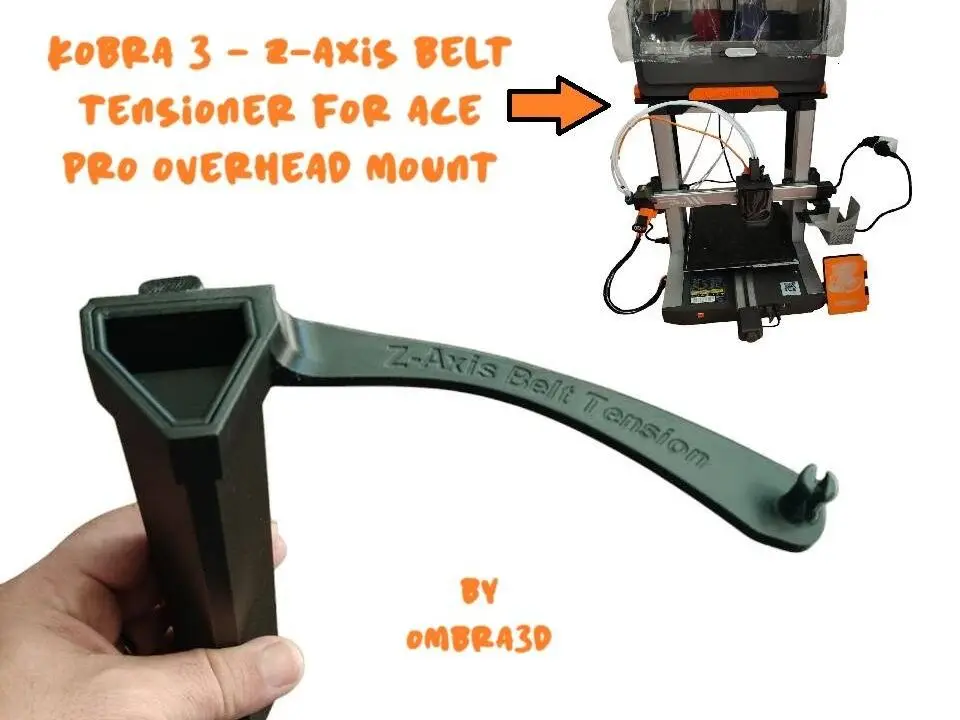

Kobra 3 - Z-Axis Belt Tensioner for ACE Pro Overhead Mount

Kobra 3 - Z-Axis Belt Tensioner for ACE Pro Overhead Mount

This version is specifically designed to address the challenge of tensioning the Z-axis belt when using the ACE Pro overhead mount. With limited maneuvering space, this tensioner fits perfectly on the left column of the ACE Pro mount, ensuring proper alignment and functionality.

Key Features:

• Precise Fit: Designed to align perfectly with the edge of the left column of the ACE Pro mount. No need to adjust up or down—just align the edge of the tensioner with the edge of the column.
• Optional Locking Pin: Includes a threaded pin to lock the tensioner in place if needed, though it fits securely even without it.
• Easy to Install: Requires minimal effort for installation and ensures a clean, functional setup.

Installation Steps:

1. Remove the top platform of the ACE Pro overhead mount.
2. Insert the tensioner into the left column until its edge aligns perfectly with the edge of the column.
3. Place the belt onto the tensioner pulley.
4. If needed, use the threaded locking pin to secure the tensioner, though it should fit snugly without adjustments.

⚠️ Warning:

• No disassembly of the belt or screws is required. Simply loosen the belt slightly by hand to attach it to the pulley. Avoid unnecessary adjustments that might misalign the dual Z-axis system.
• This tensioner is specifically designed for the ACE Pro overhead mount. Ensure compatibility by referencing the following model:
• KOBRA 3 ACE OVERHEAD MOUNT V2.
